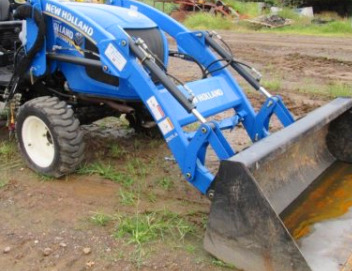

New Holland 250TL Front End Loader
The
New Holland 250TL non self-leveling loader is available with Boomer 3040, 3045,
3050 tractors. The loader has double-acting hydraulic lifting and bucket
cylinders.
The 72-in (1820 mm) heavy-duty material bucket has a heaped capacity of
0.57 cu.ft (0.44 m3). The New Holland 250TL loader’s maximum lift height
is 105 in (2667 mm) at pin and clearance with bucket dumped is 81.5 in
(2070 mm).
The lifting capacity is 2000 lbs (907 kg) at 105 in (2667 mm) maximum height (bucket
pin), and breakout force is 3540 lbs (1606 kg). The raising time is 4.2
sec. from ground line to max height, and bucket dumping time is 1.9 sec.
| Tractor Models |
Boomer 3040, 3045, 3050 (w/o SuperSteer) |
| Front Tires |
8.0x16 |
| Rear Tires |
14.9x24 |
| Hydraulic System Flow, gpm (lpm) |
9.8 (37.1) |
| Loader Model |
NH 250TL |
| Leveling Configuration |
Non Self-Leveling |
| Weight (w/o Bucket), lbs (kg) |
748 (339) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, cu. yd (m3) |
0.46 (0.35) |
| Heaped Capacity, cu. yd (m3) |
0.57 (0.44) |
| Maximum Lift Height to Pivot Pin, in (mm) |
105 (2667) |
| Clearance with Bucket Dumped, in (mm) |
81.5 (2070) |
| Clearance with Level Bucket, in (mm) |
97.5 (2477) |
| Reach at Maximum Lift Height, in (mm) |
33 (838) |
| Digging Depth, in (mm) |
6.5 (165) |
| Maximum Dump Angle, degrees |
58 |
| Reach with Bucket on Ground, in (mm) |
69.25 (1759) |
| Maximum Rollback Angle, degrees |
30 |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
2000 (907) |
| Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) |
1540 (699) |
| Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) |
2317 (1051) |
| Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) |
1759 (798) |
| Max. Breakout Force at Bucket Pivot Point, lbs (kg) |
3540 (1606) |
| Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) |
2640 (1197) |
| Loader Raise, second |
4,2 |
| Loader Lower, second |
3,2 |
| Bucket Dump, second |
1,9 |
| Bucket Rollback, second |
2,6 |
