International Harvester 1455 XL

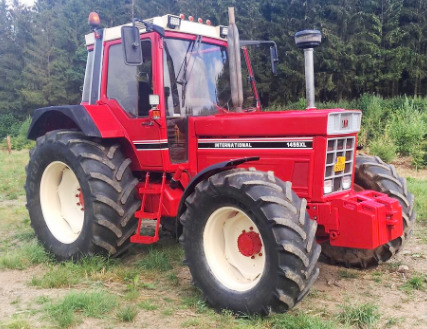

The International Harvester 1455XL is a 4WD (4x4) row crop tractor. This model was manufactured from 1981 to 1985. The International Harvester 1455 XL tractor is equipped with a IH DT-402 6-cylinder direct injection turbocharged diesel engine.

A 402 cu.in (6.6 L) engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.50" (140 mm), and rated power of 145 hp (108.2 kW). The transmission includes a dry clutch and fully synchronized gearbox with 20 forward and 9 reverse gears. The maximum travel speed (forward/reverse): 14.5 mph (23.3 km/h) and 13.6 mph (21.9 km/h).

The open center hydraulic system includes a gear pump with a rated capacity of 13.2 gpm (50 lpm). The hydraulic system pressure is 2500 psi (172 bar). The IH 1455XL was equipped with a hydrostatic power steering, wet disc brakes, 14.9R28 front tires, and 20.8R38 rear tires. The wheelbase is 110.2 inches (2790 mm).

Engine
Engine Model International Harvester DT-402
Engine Type 4 Stroke, 6-cylinder turbocharged diesel
Number of Cylinders 6
Displacement, cu in (L) 402.0 (6.60)
Engine Bore, in (mm) 3.94 (100.0)
Engine Stroke, in (mm) 5.50 (140.0)
Aspiration Turbocharged
Rated Engine Power, hp (kW) 145.0 (108.2)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 528.8 (390.6)
Torque Speed, rpm 1600
Fuel System Direct injection
Fuel System Control Mechanical
Fuel Tank Capacity, gal (L) 52.8 (199.0)
Oil Capacity, qts (L) 13.2 (12.5)
Coolant Capacity, qts (L) 34.9 (33.2)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 55

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 122.0 (90.5)
PTO Clutch Type Dry disc
PTO Speeds, rpm 540/1000

Transmission
Transmission Type Fully synchronized
Gearbox Type 20F/9R
Number of Forward Gears 20
Number of Reverse Gears 9
Clutch Type Dry disc
Oil Capacity, qts (L) 42.3 (40.0)
Maximum Forward Speed, mph (kph) 14.5 (23.3)
Maximum Reverse Speed, mph (kph) 13.6 (21.9)


Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Wet disc
Front Tire Size 14.9R28
Rear Tire Size 20.8R38
Front Tread, in (mm) 68.5-76.4 (1730-1940)
Rear Tread, in (mm) 71.6-83.6 (1810-2120)

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 13.2 (50.0)
Hydraulic Pressure, Bar (psi) 172 (2500)
Number of Standard Remote Valves 2
3-Point Hitch Category 2/3
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 12350 (5600)

Dimensions and Weight
Wheelbase, in (mm) 110.2 (2790)
Length, in (mm) 186.6 (4730)
Height, in (mm) 115.7 (2930)
Ground Clearance, in (mm) 18.5 (460)
Turning Radius, in (mm) 239 (6050)
Weight, lb (kg) 12370 (5610)
