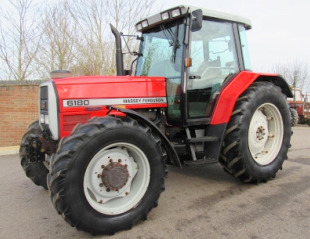

Massey Ferguson 6180 Tractor
The
Massey Ferguson 6180 is a row-crop tractor from 6100 series. This model was
manufactured between 1995 and 1998. The components of Massey Ferguson 6180
powerline system: Perkins 1006-6T 6-cylinder direct injection turbocharged
diesel engine and 16x16 Speedshift transmission, or Dynashift transmission with
32 forward and 32 reverse gears.
A 365 cu.in (6 L) engine has a power rating of 119.2 Hp (88.3 kW), and
maximum torque of 490 Nm (363 lb-ft) at 1400 rpm. The maximum travel
speed (forward or reverse): 23.3 mph (37.4 km/h).
The open center hydraulic system includes a two-stage gear pump with
rated fluid flow of 15 gallons per minute (57 liters per minute). The
hydraulic system pressure is 2680 psi (185 bar). The two-wheel drive
models are equipped with 10.0x16 front tyres and 18.4R34 rear tyres. The
380/70R24 front tyres and 480/70R34 rear tyres fit four-wheel drive
tractors. The wheelbase is 106.1" (2695 mm) for models with 2WD (4x2)
and 106.3" (2700 mm) for models with 4WD (4x4).
| Engine Model |
Perkins 1006-6T |
| Engine Type |
4 Cycle, six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
119.2 (88.3) |
| Rated Engine Speed, rpm |
2200-2310 |
| Idling Speed, rpm |
850 |
| Maximum Torque, Nm (ft-lbs) |
490 (363) |
| Torque Speed, rpm |
1400 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves Type |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
15.7 (14.8) |
| Coolant Capacity, qts (L) |
26.5 (25.0) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
109.2 (80.9) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Rear PTO Control |
Lever in the Cabine |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Front PTO Control |
Knob in the Cabine |
| Transmission Type |
Speedshift |
| Gearbox Type |
16F/16R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet type with spring loaded 4 disc |
| Creeper |
Optional |
| Oil Capacity, qts (L) |
74.2 (70.0) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.5) |
| Maximum Reverse Speed, mph (kph) |
18.3 (29.5) |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, qts (L) |
74.2 (70.0) |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double action |
| Service Brake |
Oil immersed single disc |
| Service Brake Disc Diameter, in (mm) |
13.5 (343) |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Hydraulic System Type (Std) |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Implement Pump Flow, gpm (Lpm) |
15.0 (57.0) |
| Hydraulic Pressure, Bar (psi) |
185 (2680) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Steering Pressure, Bar (psi) |
17 (246.5) |
| Hydraulic System Type (Opt) |
Closed center |
| Implement Pump Type |
Variable displacement pump |
| Implement Pump Flow, gpm (Lpm) |
27.7 (105.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity 24 (610 mm) behind pin, lb (kg) |
12335 (5595) |
| Standard Lift Capacity at lift pin, lb (kg) |
15690 (7117) |
| Wheelbase (2WD), in (mm) |
106.1 (2695) |
| Wheelbase (4WD), in (mm) |
106.3 (2700) |
| Overall Length, in (mm) |
173.3 (4402) |
| Height (Cab), in (mm) |
109 (2768) |
| Height (Steering Wheel), in (mm) |
83 (2110) |
| Width, in (mm) |
107.6 (2733) |
| Ground Clearance, in (mm) |
17.4 (442) |
| Turning Radius, in (mm) |
195.3 (4940) |
| Weight (2WD), lb (kg) |
9250 (4920) |
| Weight (4WD), lb (kg) |
10850 (4730) |
