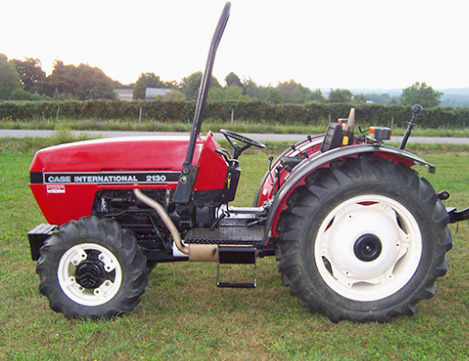

Case IH 2130 Tractor
The
Case IH 2130 is a 2-wheel drive or 4-wheel drive 2100 series orchard-vineyard
tractor. This model was manufactured from 1988 to 1993. The Case IH 2130 tractor
is powered by SLH 1000.3A 3-cylinder air-cooled diesel engine.
The 183.1 cubic inches (3 L) engine has a cylinder bore of 4.14" (105
mm), piston stroke of 4.55" (115 mm), and rated power of 52 hp (38.5
kW). The Case IH 2130 is equipped with two transmission options: 8x8
partially synchronized transmission and 12x12 partially synchronized
transmission. The maximum travel speed (forward and reverse): 18.1 mph
(29.2 km/h).
The open center hydraulic system used a gear pump with rated fluid flow
of 15.6 gal/min (59 l/min). The 2WD models are equipped with 5.50-16 or
7.50-16 front tires and 13.6R28 or 14.9R28 rear tires. The 8.25-16 or
7.50-18 front tires and 13.6R28 rear tires are used for 4WD tractors.
The wheelbase is 78 in (1980 mm) for 4x2 (2WD) models and 76.6 in (1940
mm) for 4x4 (4WD) models.
| Engine Model |
SLH 1000.3A |
| Engine Type |
4-Cycle, 3-cylinder air-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
183.1 (3.00) |
| Engine Bore, in (mm) |
4.14 (105) |
| Engine Stroke, in (mm) |
4.55 (115) |
| Rated Engine Power, hp (kW) |
52.0 (38.5) |
| Rated Engine Speed, rpm |
2350 |
| Maximum Torque, Nm (ft-lbs) |
192 (142) |
| Torque Speed, rpm |
1350 |
| Compression |
17:1 |
| Firing Order |
1-3-2 |
| Fuel System |
Injection pump |
| Air cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
15.8 (60.0) |
| Valve Clearance, in (mm) |
0.008 (0.203) |
| Oil Capacity, qts (L) |
7.1 (6.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
47.0 (35.0) |
| PTO Speed, rpm |
540/750/1000 |
| PTO / Engine Speed, rpm |
540/2115 |
| PTO / Engine Speed, rpm |
750/2015 |
| PTO / Engine Speed, rpm |
1000/2105 |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
38.0 (36.0) |
| Oil Capacity (4WD), qts (L) |
40.2 (38.0) |
| Maximum Forward Speed, mph (kph) |
18.1 (29.2) |
| Maximum Reverse Speed, mph (kph) |
18.1 (29.2) |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
38.0 (36.0) |
| Oil Capacity (4WD), qts (L) |
40.2 (38.0) |
| Maximum Forward Speed, mph (kph) |
18.1 (29.2) |
| Maximum Reverse Speed, mph (kph) |
18.1 (29.2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2130V with 2WD) |
5.50-16 |
| Rear Tire Size (2130V with 2WD) |
13.6R28 |
| Front Tire Size (2130V with 4WD) |
8.25-16 |
| Rear Tire Size (2130V with 4WD) |
13.6R28 |
| Front Tire Size (2130E with 2WD) |
7.50-16 |
| Rear Tire Size (2130E with 2WD) |
14.9R28 |
| Front Tire Size (2130E with 4WD) |
7.50-18 |
| Rear Tire Size (2130E with 4WD) |
13.6R28 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15.6 (59.0) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin (2130V), lb (kg) |
5575 (2530) |
| Standard Lift Capacity at lift pin (2130E), lb (kg) |
5465 (2480) |
| Wheelbase (2WD), in (mm) |
78 (1980) |
| Wheelbase (4WD), in (mm) |
76.6 (1940) |
| Length (2130V), in (mm) |
132.3 (3360) |
| Length (2130E), in (mm) |
132.9 (3370) |
| Height (Hood), in (mm) |
52.1 (1320) |
| Height (ROPS), in (mm) |
92.7 (2350) |
| Overall Width (2130V), in (mm) |
47.8 (1210) |
| Overall Width (2130E), in (mm) |
53.7 (1360) |
| Ground Clearance (2WD), in (mm) |
13.6 (340) |
| Ground Clearance (4WD), in (mm) |
9.9 (250) |
| Weight (2130V with 2WD), lb (kg) |
4100 (1860) |
| Weight (2130E with 2WD), lb (kg) |
4165 (1890) |
| Weight (2130V with 4WD), lb (kg) |
4430 (2010) |
| Weight (2130E with 4WD), lb (kg) |
4540 (2060) |
