Case L530 Front End Loader

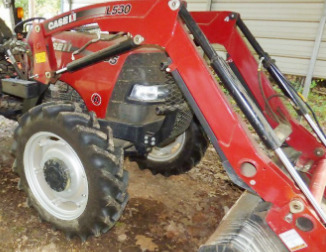

The Case L530 front end loader is fitted to Case IH Farmall 45A, and Farmall 55A tractors. The loader has double acting hydraulic lift/bucket cylinders and standard bucket level indicator.

The standard material bucket has a width of 72 inches and nominal heaped capacity of 21.3 cu.ft (0.61 m3). The nominal heaped capacity of 72-inch high volume bucket is 32.9 cu.ft (0.94 m3).

The Case IH L530 loader has a lifting capacity of 2624 lbs or 1190 kg (at bucket pin) to a max height of 111 inches (2820 mm), and boom breakout force of 3461 lbs (1570 kg). The bucket dump clearance with a 43-degree max dump angle is 82 inches (2090 mm).

Compatible Tractors
Tractor Models Farmall 45A, 55A
Front Tires 14.9x28
Rear Tires 9.5x24
Hydraulic System Flow, gpm (lpm) 11.6 (44.0)

Loader
Loader Model Case IH L530
Bucket Level Indicator Standard
Weight, lb (kg) 1350 (615)

Standard Material Bucket
Width, in (mm) 72 (1800)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)


High Capacity Bucket
Width, in (mm) 72 (1800)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 510 (232)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 111 (2820)
Clearance with bucket dumped, in (mm) 82 (2090)
Reach at maximum lift height, in (mm) 43 (1100)
Maximum dump angle, degrees 43
Maximum rollback angle, degrees 23
Digging Depth, in (mm) 4 (110)

Operating Data
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) 2624 (1190)
Lift Capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 3461 (1570)
Breakout force at pivot pin, bucket at ground, lbs (kg) 4299 (1950)
