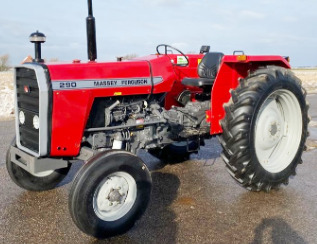

Massey Ferguson 290 Tractor
The
Massey Ferguson 290 utility tractor was manufactured from 1983 to 1986. The MF
290 tractor is powered by Perkins AD4.248 four-cylinder water-cooled diesel
engine with a rated power of 80 Hp (59,7 kW) and 284 Nm (209,5 lb-ft) of max
torque at 1600 rpm.
The Massey Ferguson 290 is fitted with 2 transmission options: 8x2 gear
transmission, or 12x4 Multi power transmission. The maximum forward
speed - 20,4 mph (32,8 km/h), max. reverse speed - 9,7 mph (15,6 km/h).
The open center hydraulic system includes a gear pump with flow rate of
14 gal/min (53 l/min).
The hydraulic pressure is 3000 psi (207 bar). The two-wheel drive models
are equipped with 6.50x16 front tyres and 16.9x24 rear tyres. The
7.50x16 front tyres and 16.9x30 rear tyres fit four-wheel drive
tractors. The wheelbase is 84" (2130 mm) for 2WD models and 90.2" (2290
mm) for 4WD models.
| Engine Model |
Perkins AD4.248 |
| Engine Type |
Four-cylinder liquid cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
248,0 (4,1) |
| Engine Bore, in (mm) |
3,98 (101,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Rated Engine Power, hp (kW) |
80,0 (59,7) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
284 (209,5) |
| Torque Speed, rpm |
1600 |
| Compression |
16:1 |
| Firing Order |
1-3-4-2 |
| Fuel Type |
Diesel |
| Fuel Tank Capacity, gal (L) |
21,0 (79,5) |
| Valve Tip Clearance, in (mm) |
0,012 (0,30) |
| Lubricating Oil Pressure, lbf/in2 (kgf/cm2) |
30-60 (2,1-4,2) |
| Oil Capacity, qts (L) |
8,0 (7,6) |
| Coolant Capacity, qts (L) |
15,0 (14,2) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
45 |
| PTO Operational Type (Std) |
Live |
| PTO Operational Type (Opt) |
Independent |
| PTO Horsepower, hp (kW) |
65,0 (48,5) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Maximum Speed (Forward), mph (kph) |
20,4 (32,8) |
| Maximum Speed (Reverse), mph (kph) |
8,4 (13,5) |
| Transmission Type |
Multi-Power |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Maximum Speed (Forward), mph (kph) |
19,0 (30,6) |
| Maximum Speed (Reverse), mph (kph) |
9,7 (15,6) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
6.50-16 |
| Rear Tire Size (2WD) |
16.9x24 |
| Front Tire Size (4WD) |
7.50-16 |
| Rear Tire Size (4WD) |
16.9-30 |
| Hydraulic System Type |
Open center |
| Total Pump Flow, gpm (Lpm) |
14,0 (53,0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic Oil Capacity, gal (L) |
11,0 (41,6) |
| Number of Standard Remote Valves |
1 to 3 |
| 3-Point Hitch |
Rear type |
| 3-Point Hitch Category |
2 |
| Wheelbase (2WD), in (mm) |
84,0 (2130) |
| Wheelbase (4WD), in (mm) |
90,2 (2290) |
| Length (2WD), in (mm) |
150,8 (3830) |
| Length (4WD), in (mm) |
153,2 (3880) |
| Height, in (mm) |
99,2 (2510) |
| Overall Width, in (mm) |
85,0 (2150) |
| Ground Clearance, in (mm) |
14,9 (370) |
| Front Tread (2WD), in (mm) |
54,0 to 70,0 (1370 to 1770) |
| Front Tread (4WD), in (mm) |
54.2 to 76.5 (1370 to 1940) |
| Rear Tread, in (mm) |
56,0 to 90,0 (1420 to 2280) |
| Shipping Weight (2WD), lb (kg) |
5510 (2500) |
| Shipping Weight (4WD), lb (kg) |
6590 (2990) |
| Operating Weight, lb (kg) |
5940 (2695) |
| Ballasted Weight, lb (kg) |
9070 (4115) |
