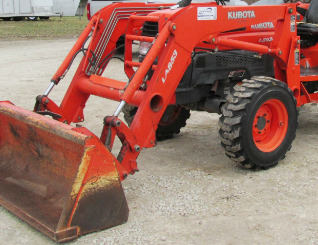

Kubota LA853 Front End Loader

The Kubota LA853 loader is designed to fit Kubota L5030 tractor. The front end loader is equipped with double-acting hydraulic bucket and lifting cylinders.

The Kubota LA853 loader has a max lift height of 113.6 inches (2880 mm) at pin and bucket dump clearance of 89.8 inches (2280 mm).

The lifting capacity to full height is 2374 lbs (1076 kg) at bucket pin or 1764 lbs (800 kg) at 19.7" (500 mm) from bucket pin, and breakout force is 3125 lbs (1417 kg).

The 6-ft standard material bucket has a nominal heaped capacity of 13.1 cu.ft (0.37 m3) and weight of 322 lbs (146 kg).

Compatible Tractors
Tractor Models Kubota L5030
Front Tires 9,5-16
Rear Tires 14,9-26
Hydraulic System Flow, gpm (lpm) 9.8 (37.1)

Standard Material Bucket
Width, in (mm) 72 (1820)
Length, in (mm) 25.7 (652)
Height, in (mm) 22.4 (570)
Depth, in (mm) 21.5 (547)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 322 (146)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 113.6 (2880)
Clearance with Bucket Dumped, in (mm) 89.8 (2280)
Reach at Maximum Lift Height, in (mm) 20.1 (510)
Maximum Dump Angle, degrees 45
Maximum Rollback Angle, degrees 40

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 2374 (1076)
Lift Capacity to Max. Height at 500mm from Bucket Pivot Point, lbs (kg) 1764 (800)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 3125 (1417)
