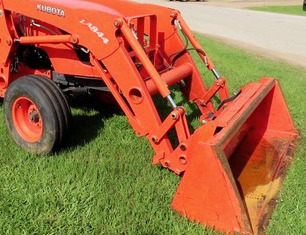

Kubota LA844 Front End Loader

The Kubota LA844 front end loader is used for Kubota MX4700, MX5100 tractors. The LA844 loader is equipped with double acting lift and bucket hydraulic cylinders.

The 6-ft standard material and heavy-duty material buckets have a heaped capacity of 0.37 cu.m (13 cu.ft). The light material bucket has a nominal heaped capacity of 0.45 cu.m (16 cu.ft) and width of 72 in. The Kubota LA844 loader’s maximum lift height is 2810 mm (110.7 in) at pin, and clearance with bucket dumped is 2203 mm (87.1 in).

The lift capacity is 1110 kg (2445 lb) at maximum height (bucket pin), and boom breakout force is 1900 kg (4180 lb). The raising time is 4.5 sec. from ground level to max height, and bucket dump time is 1.9 seconds.

Compatible Tractors
Tractor model Kubota MX4700, MX5100
Wheel base, mm (in) 1885 (74.5)
Front tires 9.5x16
Rear tires 13.9x26
Rated flow, lpm (gpm) 37.0 (9.8)
Maximum pressure, Bar (psi) 185 (2630)

Loader
Loader model Kubota LA844
Net weight, kg (lbs) 530 (1150)
Boom cylinder bore, mm (in) 55 (2.17)
Boom cylinder stroke, mm (in) 500 (19.7)
Bucket cylinder bore, mm (in) 55 (2.17)
Bucket cylinder stroke, mm (in) 465 (18.3)

Standard Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 547 (21.5)
Height, mm (in) 570 (22.4)
Length, mm (in) 652 (25.7)
Capacity (Struck), m3 (cu.ft.) 0.31 (10.9)
Capacity (Heaped), m3 (cu.ft.) 0.37 (13.1)
Weight, kg (lbs) 146 (322)

Heavy-Duty Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 477 (18.8)
Height, mm (in) 608 (23.9)
Length, mm (in) 630 (24.8)
Capacity (Struck), m3 (cu.ft.) 0.31 (10.9)
Capacity (Heaped), m3 (cu.ft.) 0.37 (13.0)
Weight, kg (lbs) 164 (362)


Light Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 607 (23.9)
Height, mm (in) 570 (22.4)
Length, mm (in) 691 (27.2)
Capacity (Struck), m3 (cu.ft.) 0.36 (12.7)
Capacity (Heaped), m3 (cu.ft.) 0.45 (16.0)
Weight, kg (lbs) 136 (300)

Loader Dimensions
Maximum lift height, mm (in) 2810 (110.7)
Clearance at full height, bucket dumped, mm (in) 2203 (87.1)
Reach at maximum height, mm (in) 557 (22.0)
Bucket dump angle at full height, degrees 45
Reach at ground, bucket level, mm (in) 1875 (74.1)
Bucket rollback angle at ground, degrees 42
Digging depth, mm (in) 152 (6.0)
Overall height in carrying position, mm (in) 1410 (55.5)

Operating Data
Lift capacity to full height at pivot point, kg (lb) 1110 (2445)
Lift capacity to full height at 19.7" (500 mm) ahead of pivot point, kg (lb) 835 (1840)
Lift capacity to 59" (1.5 m) height at pivot point, kg (lb) 1375 (3030)
Lift capacity to 59" (1.5 m) height at 19.7" (500 mm) ahead of pivot point, kg (lb) 1115 (2450)
Boom breakout force at pivot point, kg (lb) 1900 (4180)
Boom breakout force at 19.7" (500 mm) ahead of pivot point, kg (lb) 1485 (3260)

Cycle Times
Raising time, sec. 4,5
Lowering time, sec. 2,8
Bucket dumping time, sec. 1,9
Bucket rollback time, sec. 2,5
