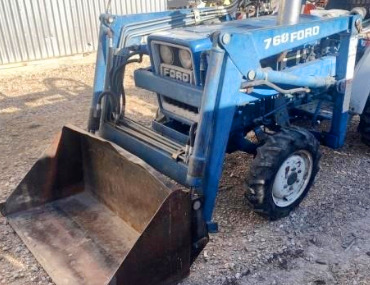

Ford 768 Front End Loader

The Ford 768 loader is available for Ford 1100, 1200 tractors. The loader is equipped with a double acting hydraulic lift and bucket cylinders. The front end loader has a lifting capacity (at bucket pin) of 530 lbs (240 kg) to full height of 70 in (1770 mm), and boom breakout force of 980 lbs (444 kg).

The bucket dump clearance is 52 in (1320 mm) at maximum dump angle of 40 degrees. The estimated cycle times are 6 seconds raising to full height, and 4 seconds full bucket rollback.

The Ford 768 loader is compatible with the following buckets: a 40" (1010 mm) bucket with a nominal heaped capacity of 6.3 cu.ft (0.15 cu.m), or 48" (1220 mm) bucket with a heaped capacity of 7.5 cu.ft (0.21 cu.m).

Compatible Tractors
Tractor models Ford 1100, 1200
Front tires 5.00x12
Rear tires 8.00x16
Hydraulic system flow, gpm (lpm) 4.0 (15.2)
Hydraulic pressure, bar (psi) 103 (1500)

Loader
Loader model Ford 768
Attachment control type Hydraulic/Mechanical
Weight, lbs (kg) 540 (244)

40" Standard Material Bucket
Width, in (mm) 40 (1010)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 4,9 (0,14)
Capacity (Heaped), cu.ft (m3) 6,3 (0,15)
Weight, lbs (kg) 200 (90)


48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 70 (1770)
Reach at maximum height, in (mm) 22.5 (570)
Clearance, bucket dumped, in (mm) 52 (1320)
Maximum dumping angle, degrees 40
Reach, bucket on ground, in (mm) 47.5 (1200)
Rollback angle, degrees 7,5
Maximum digging depth, in (mm) 4 (101)

Operating Data
Lift capacity to maximum height, lbs (kg) 530 (240)
Breakout force at pivot pin, lbs (kg) 980 (444)

Cycle Times
Raising time to full height, sec 6,0
Lowering time, sec 3,5
Bucket rollback time, sec 4,0
