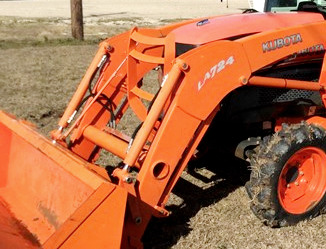

Kubota LA724 Front End Loader

The Kubota LA724 loader was designed for Kubota L3540, L3940 tractors. The loader has double-acting lift cylinders and bucket cylinders with diameters of 50 mm (1.97 in).

The loader has a lifting capacity (at pin) of 846 kg (1865 lbs) to maximum height of 2597 mm (102.2"), and breakout force of 1547 kg (3404 lbs). A full dump clearance with a 45-degree max dump angle is 1995 mm (78.5"). The estimated cycle times are 3.2 seconds raising to maximum height, and 1.3 seconds maximum bucket dumping.

The Kubota LA724 loader is equipped with a 72" (1830 mm) standard material bucket with a rated capacity of 0.37 cu.m (13.1 cu.ft) and weight of 146 kg (322 lbs).

Compatible Tractors
Tractor models Kubota L3540, L3940
Wheel base, mm (in) 1895 (74.6)
Front tires 8,3-16
Rear tires 14,9-24
Rated flow, lpm (gpm) 37 (9.8)
Maximum pressure, bar (psi) 185 (2630)

Loader
Loader model Kubota LA724
Net weight, kg (lbs) 530 (1168)
Boom cylinder bore, mm (in) 50 (1.97)
Boom cylinder stroke, mm (in) 502 (19.8)
Bucket cylinder bore, mm (in) 50 (1.97)
Bucket cylinder stroke, mm (in) 465 (18.3)

Standard Material Bucket
Width, mm (in) 1830 (72)
Depth, mm (in) 547 (21.5)
Height, mm (in) 570 (22.4)
Length, mm (in) 652 (25.7)
Bucket Capacity (Struck), m3 (cu.ft.) 0.31 (10.9)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.37 (13.1)
Weight, kg (lbs) 146 (322)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 2597 (102.2)
Max. lift height under level bucket, mm (in) 2395 (94.3)
Clearance with bucket dumped, mm (in) 1995 (78.5)
Reach at max. lift height (Dumping reach), mm (in) 561 (22.1)
Max. dump angle, deg 45
Reach with bucket on ground, mm (in) 1763 (69.4)
Bucket roll-back angle, deg 41
Digging depth, mm (in) 122 (4.8)
Overall height in carrying position, mm (in) 1380 (54.3)

Operating Data
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) 720 (1587)
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 846 (1865)
Lift capacity (500 mm forward, max. height), kg (lbs) 642 (1415)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) 1054 (2324)
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) 845 (1863)
Breakout force (Bucket pivot pin), kg (lbs) 1547 (3404)
Breakout force (500 mm forward), kg (lbs) 1192 (2623)
Bucket rollback force at max. height, kg (lbs) 1147 (2524)
Bucket rollback force at 1.5M (5.9 in.), kg (lbs) 1676 (3688)
Bucket rollback force at ground level, kg (lbs) 1785 (3928)

Cycle Times
Raising time, sec. 3,2
Lowering time, sec. 2
Bucket dumping time, sec. 1,3
Bucket rollback time, sec. 1,9
