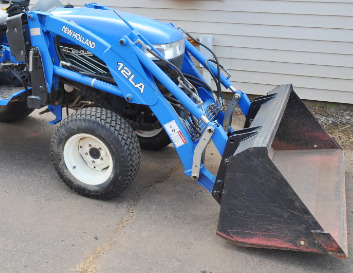

New Holland 12LA Front End Loader

The New Holland 12LA non-self leveling front end loader is designed to fit New Holland TC18, TC21D, TC24D, New Holland TC21DA, TC24DA tractors. The loader has double acting hydraulic bucket and lifting cylinders.

The New Holland 12LA loader has a lifting capacity (at pivot pin) of 1090 lbs (496 kg) to full height of 85.5" (2170 mm), and breakout force (bucket on ground) of 1720 lbs (782 kg). A full dump clearance with a 48-degree maximum dump angle is 62" (1570 mm).

Compatible buckets for New Holland 12LA loader: 48" and 54" standard material buckets with heaped capacities of 0.33 cu.yd (0.25 cu.m) and 0.40 cu.yd (0.31 cu.m), or 48" and 54" high capacity buckets with heaped capacities of 0.39 cu.yd (0.30 cu.m) and 0.46 cu.yd (0.35 cu.m).

Compatible Tractors
Tractor Models New Holland TC18, TC21D/21DA, TC24D/24DA
Front Tires 22x9.00-12
Rear Tires 31x13.5-15
Hydraulic System Flow, gpm (lpm) 4.9 (18.5)

Loader
Loader Model NH 12LA Quick-Attach
Leveling Configuration Non-self leveling
Weight (w/o Bucket), lbs (kg) 490 (223)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Struck Capacity, yd3 (m3) 0.26 (0.20)
Heaped Capacity, yd3 (m3) 0.33 (0.25)

54" Standard Material Bucket
Width, in (mm) 54 (1350)
Struck Capacity, yd3 (m3) 0.36 (0.27)
Heaped Capacity, yd3 (m3) 0.40 (0.31)

48" High Capacity Bucket
Width, in (mm) 48 (1220)
Struck Capacity, yd3 (m3) 0.35 (0.27)
Heaped Capacity, yd3 (m3) 0.39 (0.30)


54" High Capacity Bucket
Width, in (mm) 54 (1350)
Struck Capacity, yd3 (m3) 0.39 (0.30)
Heaped Capacity, yd3 (m3) 0.46 (0.35)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 85.5 (2170)
Clearance with Bucket Dumped, in (mm) 62 (1570)
Reach at Maximum Lift Height, in (mm) 23.5 (590)
Digging Depth, in (mm) 2.5 (63.5)
Maximum Dump Angle, degrees 48
Maximum Rollback Angle, degrees 32

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1090 (496)
Lift Capacity to Max. Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 750 (341)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 1720 (782)
Max. Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1220 (555)
