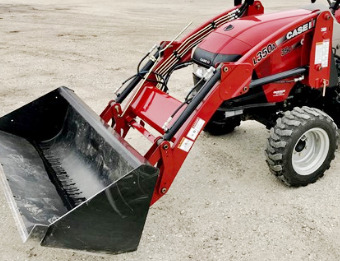

Case L350 Front End Loader

The Case L350 loader is compatible with Case IH Farmall 35C, 40C, Farmall 40B, 50B tractors. The L350 front end loader has a non-self leveling system.

The 68" standard material bucket has a rated capacity of 19.9 cu.ft (0.57 m3) and weight of 430 lbs (198 kg). The 72" standard material bucket has a rated capacity of 16.9 cu.ft (0.48 m3) and weight of 455 lbs (207 kg).

The Case IH L350 loader has a lift capacity (at pivot pin) of 2000 lbs (907 kg) to maximum height of 105" (2667 mm), and breakout force (bucket on ground) of 3540 lbs (1606 kg). A full dump clearance with a 58-degree maximum dump angle is 81.5" (2070 mm). The rated cycle times are 4.1 seconds raising to maximum height, and 3.8 seconds full bucket dumping.

Compatible Tractors
Tractor Models Farmall 35C, 40C, Farmall 40B, 50B
Front Tires 9.5x16, 4PR
Rear Tires 13.6-24, 4PR
Hydraulic System Flow, gpm (lpm) 8.2 (31.0)

Loader
Loader Model Case L350
Leveling System Non Self Leveling
Weight, lb (kg) 650 (295)

68" Standard Material Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu.ft (m3) 15.9 (0.45)
Heaped Capacity, cu.ft (m3) 19.9 (0.57)
Weight, lb (kg) 430 (198)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 105 (2667)
Clearance with bucket dumped, in (mm) 81.5 (2070)
Reach at maximum lift height, in (mm) 33 (838)
Maximum dump angle, degrees 58
Maximum rollback angle, degrees 30
Digging Depth, in (mm) 6.5 (165)

Operating Data
Lift Capacity to maximum height, at bucket pivot pin, lbs (kg) 2000 (907)
Lift Capacity to max. height, 19.7" (500 mm) forward of bucket pivot pin, lbs (kg) 1540 (699)
Breakout force, at pivot pin, bucket at ground, lbs (kg) 3540 (1606)
Breakout force, 19.7" (500 mm) forward of bucket pivot pin at ground, lbs (kg) 2640 (1197)

Cycle Times
Raise time to full height, sec 4,1
Lower time, sec 2,1
Bucket dump time, sec 3,8
