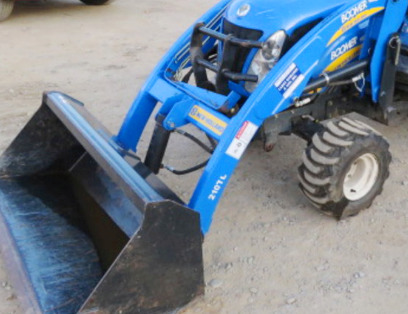

New Holland 210TL Front End Loader

The New Holland 210TL loader is designed for NH Boomer 1030, Boomer T1110 tractors. The loader is equipped with double acting hydraulic boom and bucket cylinders.

The New Holland 210TL loader has a lifting capacity (at bucket pin) of 900 lb (408 kg) to max height of 72.6 inches (1844 mm), and bucket's breakout force of 1492 lb (677 kg). A full dump clearance with a 43-degree max dump angle is 52.2 inches (1326 mm).

The rated cycle times are 3.2 seconds lifting to maximum height, and 2 seconds full bucket dumping. The loader is compatible with a 48 inches (1220 mm) heavy-duty material bucket with a rated capacity of 0.27 cu.yd (0.21 m3).

Compatible Tractors
Tractor Models Boomer 1030, T1110
Front Tires 20x10.0-10 4PR
Rear Tires 29x12.5-15 4PR
Hydraulic System Flow, gpm (lpm) 4.7 (17.6)

Loader
Loader Model NH 210TL
Leveling Configuration Non Self-Leveling
Weight (w/o Bucket), lbs (kg) 375 (170)

Heavy-Duty Material Bucket
Width, in (mm) 48 (1220)
Struck Capacity, cu. yd (m3) 0.19 (0.15)
Heaped Capacity, cu. yd (m3) 0.24 (0.18)
Width, in (mm) 54 (1350)
Struck Capacity, cu. yd (m3) 0.22 (0.17)
Heaped Capacity, cu. yd (m3) 0.27 (0.21)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 72.6 (1844)
Clearance with Bucket Dumped, in (mm) 52.2 (1326)
Clearance with Level Bucket, in (mm) 65.9 (1674)
Reach at Maximum Lift Height, in (mm) 27.8 (706)
Digging Depth, in (mm) 2 (51)
Maximum Dump Angle, degrees 43
Reach with Bucket on Ground, in (mm) 49 (1245)
Maximum Rollback Angle, degrees 23

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 900 (408)
Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) 537 (244)
Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) 993 (450)
Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) 604 (274)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 1492 (677)
Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) 1084 (492)

Cycle Times
Loader Raise, second 3,2
Loader Lower, second 2,7
Bucket Dump, second 2
Bucket Rollback, second 1,5
