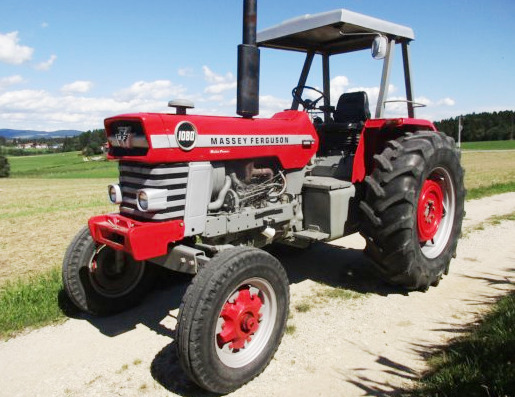

Massey Ferguson 1080 Tractor
The
Massey Ferguson 1080 farm tractor was manufactured between 1977 and 1979. The
Massey Ferguson 1080 powertrain system components: Perkins A4.318 4-stroke
4-cylinder liquid-cooled diesel engine and 12x4 Multi Power partial powershift
transmission, or 8-speed range gear transmission.
A 318 cubic inches Perkins diesel engine output is 88 Hp (65.2 kW), and a
maximum torque is 355 Nm (262 lb-ft) at 1250 rev/min. Max. forward speed
- 19.4 mph (31.2 kph), max. reverse speed - 9.6 mph (15.4 kph). The open
center hydraulic system includes a gear pump with a flow rate of 8 gpm
(30.3 lpm).
The hydraulic pressure is 156 bar (2300 psi). The rear lifting capacity is
5370 lbs (2440 kg). The 2WD models are equipped with 7.50x18 front tyres
and 18.4x34 rear tyres. The 10.00x16 front tyres and 23.1x30 rear tyres
fit 4WD tractors. The wheel base is 97.7 inches (2480 mm).
| Engine Model |
Perkins A4.318 |
| Engine Type |
4 Stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu.in (L) |
318 (5.20) |
| Engine Bore, in (mm) |
4.50 (114.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
88.0 (65.2) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
355 (262) |
| Torque Speed, rpm |
1250 |
| Compression |
17.5:1 |
| Firing Order |
1-3-4-2 |
| Air Cleaner |
Dry Type |
| Fuel Tank Capacity (2WD), gal (L) |
42.0 (159.0) |
| Fuel Tank Capacity (4WD), gal (L) |
55.5 (210.0) |
| Coolant Capacity, qts (L) |
16.5 (15.5) |
| Oil Capacity, qts (L) |
10.0 (9.5) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
80.0 (59.7) |
| PTO Speed, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1718 |
| PTO / Engine Speed, rpm |
1000/2000 |
| Transmission Type |
Multi Power |
| Gearbox Type |
12F/4R, Partial powershift |
| Number of Forward Speed |
12 |
| Number of Reverse Speed |
4 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (304) |
| Maximum Forward Speed, mph (kph) |
19.4 (31.2) |
| Maximum Reverse Speed, mph (kph) |
9.6 (15.4) |
| Transmission Type |
Gear |
| Gearbox Type |
6F/2R |
| Number of Forward Speed |
6 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
17.1 (27.5) |
| Maximum Reverse Speed, mph (kph) |
8.6 (13.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Dry disc |
| Front Tire Size (2WD) |
7.50-18 |
| Rear Tire Size (2WD) |
18.4-34 |
| Front Tire Size (4WD) |
10.00-16 |
| Rear Tire Size (4WD) |
23.1-30 |
| Front Track Width, in (mm) |
56 (1420) |
| Rear Track Width, in (mm) |
68-76 (1720-1930) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
8.0 (30.3) |
| Hydraulic Pressure, Bar (psi) |
159 (2300) |
| Hydraulic Fluid Capacity, gal (L) |
11.1 (42.0) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
5370 (2440) |
| Wheelbase, in (mm) |
97.7 (2480) |
| Length, in (mm) |
154 (3910) |
| Height (Hood), in (mm) |
96.1 (2440) |
| Overall Width, in (mm) |
86.5 (2190) |
| Ground Clearance, in (mm) |
23.6 (590) |
| Turning Radius, in (mm) |
130.4 (3300) |
| Weight (Operating), lb (kg) |
8520 (3865) |
| Weight (Ballasted), lb (kg) |
11990 (5440) |
