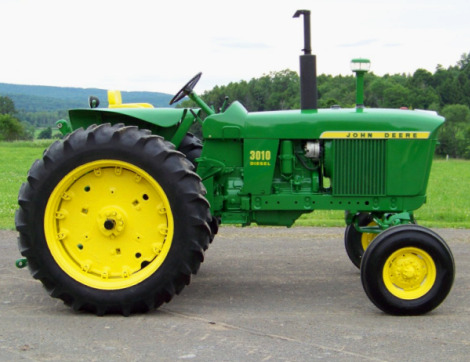

John Deere 3010 Tractor
The
John Deere 3010 is a 2WD utility or row crop tractor from New Generation Series.
This model was manufactured between 1961 and 1963. The John Deere 3010 powerline
components: JD 4 cycle 4-cyl. diesel or gasoline engine, and Syncro Range
partially synchronized transmission with 8 forward and 3 reverse gears.
A 254 cubic inches (4.20 L)
diesel engine power rating is 61 hp (45.2 kW) at
2200 rpm.
A 201 cubic inches (3.3 L) gasoline engine power rating is 55 hp (40.7
kW) at 2200 rpm.
The maximum travel speed (forward and reverse): 14.5 mph (23.3
km/h) km/h / 8.5 mph (13.7 km/h). The closed center hydraulic system used
a piston pump.
The main relief pressure is 155 bar (2250 psi). The JD 3010 tractor was
equipped with 6.0x14 (utility) or 9.0x18 (row crop) front tires and
13.6x28 (utility) or 13.6x30 (row crop) rear tires. The wheelbase is 90"
(2280 mm). The John Deere 3010 is compatible with a 48 front end loader.
The loader has a lift capacity to full height of 2400 lbs (1088 kg) and
breakout force of 3600 lbs (1630 kg).
| Engine Model |
John Deere |
| Engine Type |
4 cycle, 4-cylinder diesel |
| Number of Cylinders |
Four |
| Displacement, cu in (L) |
254 (4.20) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
61.0 (45.2) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
16.4:1 |
| Fuel Tank Capacity, gal (L) |
29.0 (110.0) |
| Coolant Capacity, qts (L) |
16.0 (15.0) |
| Electrical System Rating, Volts |
24 |
| Charging System |
Generator |
| Engine Model |
John Deere |
| Engine Type |
4 cycle, 4-cylinder gasoline |
| Number of Cylinders |
Four |
| Displacement, cu in (L) |
201 (3.30) |
| Engine Bore, in (mm) |
4.02 (102.0) |
| Engine Stroke, in (mm) |
4.02 (102.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
55.0 (40.7) |
| Rated Engine Speed, rpm |
2200 |
| Air Cleaner |
Oil bath |
| Compression |
7.5:1 |
| Fuel Tank Capacity, gal (L) |
29.0 (110.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
55.1 (41.0) |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Syncro Range |
| Gearbox Type |
8F/3R, Partially synchronized |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Dry type |
| Maximum Forward Speed, mph (kph) |
14.5 (23.3) |
| Maximum Reverse Speed, mph (kph) |
8.5 (13.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (Std) |
6.0x14 |
| Rear Tire Size (Std) |
13.6x28 |
| Front Tire Size (Opt) |
7.5x18 |
| Rear Tire Size (Opt) |
16.9x24 |
| Front Tire Size (Row-Crop) |
9.0x18 |
| Rear Tire Size (Row-Crop) |
13.6x30 |
| Hydraulic System Type |
Closed Center |
| Hydraulic Capacity, gal (L) |
9.5 (36.0) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Type |
Rear |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
90 (2280) |
| Length, in (mm) |
142 (3595) |
| Overall Width, in (mm) |
75 (1900) |
| Height (Exhaust), in (mm) |
76.3 (1930) |
| Height (Hood), in (mm) |
57 (1440) |
| Front Tread (Std), in (mm) |
52-66 (1320-1670) |
| Rear Tread (Std), in (mm) |
52-79 (1320-2000) |
| Front Tread (Row-Crop), in (mm) |
48-80 (1210-2030) |
| Rear Tread (Row-Crop), in (mm) |
57-88 (1440-2230) |
| Operating Weight (Diesel), lb (kg) |
6500 (2950) |
| Operating Weight (Gasoline), lb (kg) |
6300 (2865) |
