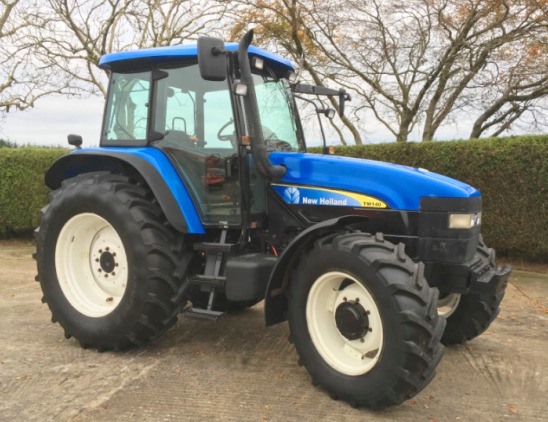

New Holland TM140 Tractor
The
New Holland TM140 is a 4x4 row crop tractor. This model was manufactured from
2002 to 2007. The New Holland TM140 tractor is powered by 7.5 L 675TA
six-cylinder turbocharged diesel engine with a rated power of 144
hp (106 kw) and 476 lb-ft (643 Nm) of max torque at 1400 rev/min.
The New Holland TM140 is fitted with three transmission options: Power
Command transmission with 24 forward and 12 reverse gears, 24x12 Dual
Command transmission, or 20x16 Shuttle Command transmission. Max. travel
speed (forward): 25 mph (40 km/h).
The closed center load sensing hydraulic system includes a piston pump
with a rated capacity of 29,6 gpm (112 lpm). The main relief pressure is 200
bar. The New Holland TM140 tractor is equipped with 14.9R28 front tyres
and 18.4R38 rear tyres. The wheelbase is 108.1 in (2723 mm) for models
with a standard front axle, 110.4 in (2783 mm) for models with Terraglide front axle, and 114.3 in (2880 mm) for models with Supersteer front axle.
| Engine Model |
New Holland |
| Engine Type |
Six-cylinder diesel |
| Engine Power Rated, hp (kw) |
144,0 (106,0) |
| Rated Engine Speed, rpm |
2200 |
| Fuel Tank, gal (litres) |
75,0 (285,0) |
| Cylinders |
6 |
| Displacement, cu in (litres) |
457,0 (7,5) |
| Engine Bore, in (mm) |
4,4 (111,8) |
| Engine Stroke, in (mm) |
5,0 (120,0) |
| Maximum torque, Nm |
643 |
| Rated torque speed, rpm |
1400 |
| Torque rise |
34 % |
| Aspiration |
Turbocharged |
| Air cleaner |
Dual paper elements with aspirator |
| Oil filter |
1 full flow cartridge |
| Fuel filter |
1 paper element |
| Oil capacity, qts (litres) |
20,0 (18,9) |
| Coolant capacity, qts (litres) |
26,8 (25,4) |
| Electrical Rating, Volts |
12 |
| Electrical Ground |
Negative |
| Charging system |
Alternator |
| Alternator Rating, Amps |
120 |
| Rear PTO |
Standard |
| Rear PTO speeds, rpm |
540/540E/1000 |
| Engine speeds, rpm |
1969/1526/2120 |
| PTO clutch type |
Wet clutch Multiplate |
| PTO Engagement |
Electro Hydraulic, proportional control |
| Ground Speed PTO |
Optional |
| Front PTO |
Optional |
| Front PTO speed, rpm |
1000 |
| Transmission Type |
Power Command |
| Gearbox Type |
18F/6R, Full powershift with auto change |
| Number of forward gears |
18 |
| Number of reverse gears |
6 |
| Number of gears with creeper (Forward/Reverse) |
28F/12R |
| Speed range (kph) |
1.94-40.0 |
| Speed range with creeper (kph) |
0.31-40.0 |
| Transmission Type |
Dual Command |
| Gearbox Type |
24F/12R |
| Number of forward gears |
24 |
| Number of reverse gears |
12 |
| Number of gears with creeper (Forward/Reverse) |
48F/24R |
| Speed range (kph) |
1.80-40.0 |
| Speed range with creeper (kph) |
0.23-40.0 |
| Transmission Type |
Shuttle Command |
| Gearbox Type |
20F/16R |
| Number of forward gears |
20 |
| Number of reverse gears |
16 |
| Number of gears with creeper (Forward/Reverse) |
40F/32R |
| Speed range (kph) |
1.40-40.0 |
| Speed range with creeper (kph) |
0.23-40.0 |
| Drive Wheels |
All Wheel Drive (4x4) |
| Steering |
Hydrostatic |
| Service brake |
Differential hydraulic wet disc |
| Front tire size |
14.9 R28 |
| Rear tire size |
18.4 R38 |
| Front track width (Min-Max), in (mm) |
61,6-90,0 (1552-2269) |
| Rear track width (Min-Max), in (mm) |
60,7-88,6 (1530-2232) |
| Hydraulic system type (Standard) |
CCLS (Closed center load sensing) |
| Hydraulic flow, lpm (gpm) |
112,0 (29,6) |
| Steering flow, lpm (gpm) |
62,0 (16,8) |
| Total oil flow, lpm (gpm) |
174,0 (47,0) |
| CCLS hydraulic pressure, bar |
200 |
| Hydraulic system type (Optional) |
Open center |
| Hydraulic flow, lpm (gpm) |
53,0 (14,2) |
| Steering flow, lpm (gpm) |
52,0 (14,1) |
| Total oil flow, lpm (gpm) |
106,0 (28,6) |
| Open centre hydraulic pressure, bar |
180 |
| Maximal number of rear valves |
4 |
| Hitch type |
Rear |
| Rear hitch category |
2/3N |
| Control |
Electronic lower-link draft control |
| Rear linkage capacity at 0.6m behind pin, lbs (kg) |
11390 (5177) |
| Max lifting capacity at pin (arms horizontal), lbs (kg) |
19025 (8647) |
| Front linkage capacity at 0.6m in front of pin, lbs (kg) |
7195 (3270) |
| Wheelbase (4WD), in (mm) |
108,1 (2723) |
| Wheelbase (Terraglide front axle), in (mm) |
110,4 (2783) |
| Wheelbase (SuperSteer front axle), in (mm) |
114,3 (2880) |
| Overall length (4WD), in (mm) |
229,7 (5789) |
| Overall length (Terraglide front axle), in (mm) |
232,1 (5849) |
| Overall length (SuperSteer front axle), in (mm) |
235,9 (5946) |
| Maximum height (4WD), in (mm) |
120,2 (3030) |
| Ground clearance, in (mm) |
15,9 (400) |
| Turning Angle (4WD/Terraglide), deg |
55 |
| Turning Angle (SuperSteer), deg |
65 |
| Total Weight (Cabine 4WD), lbs (kg) |
11880 (5400) |
| Maximum ballasted weight (Cabine 4WD), lbs (kg) |
19800 (9000) |
