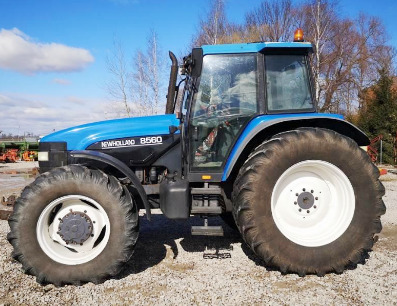

New Holland 8560 Tractor
The
New Holland 8560 is a four-wheel drive farm tractor. This model was manufactured
between 1996 and 1999. The NH 8560 driveline includes a Ford WM 456 six-cylinder
turbocharged diesel engine and Range Command 6-speed power shift transmission
with creeper gears.
A 457 cid (7,5 L) diesel engine output is 160 hp (119.3 kW) and max.
torque is 670 Nm (496 lb-ft) at 1500 rpm. Max. forward speed - 24.9 mph
(40 kph), minimum creeper speed - 0,23 mph (0,37 kph). The closed center
hydraulic system includes a piston pump with fluid flow rate of 24.7 gpm
(93.5 lpm).
The hydraulic system pressure is 2755 psi (190 bar). The New Holland
8560 tractor is equipped with 16.9R28 front tyres and 20.8R38 rear
tyres. The wheelbase is 107.1" (2719 mm). The tractor has an operating
weight of 13530 lbs (6150 kg) and maximum weight of 20900 lbs (9500 kg).
| Engine Model |
Ford WM 456 |
| Engine Type |
4 stroke six cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
457 (7,50) |
| Engine Bore, in (mm) |
4,4 (111,8) |
| Engine Stroke, in (mm) |
5,0 (127,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
160 (119.3) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
670 (496) |
| Torque Speed, rpm |
1500 |
| Compression |
17.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Tank Capacity, gal (L) |
85,9 (325,0) |
| Oil Capacity, qts (L) |
20,8 (19,7) |
| Coolant Capacity, qts (L) |
27,5 (26,0) |
| Electrical System Rating, Volts |
12 |
| Batteries Power, Ah |
100 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
130,0 (96,9) |
| PTO Speeds, rpm |
540/750/1000 |
| Transmission Model |
Range Command |
| Transmission Type |
6 Speed powershift with creeper |
| Gearbox Type |
31F/12R |
| Number of Forward Gears |
31 |
| Number of Reverse Gears |
12 |
| Powerschift Steps |
6 |
| Oil Capacity, qts (L) |
105,6 (100,0) |
| Maximum Speed Forward, mph (kph) |
24,9 (40,0) |
| Creeper Speed, mph (kph) |
0,23 (0,37) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size |
16.9R28 |
| Rear Tire Size |
20.8R38 |
| Hydraulic System Type |
Closed Center |
| Implement Pump Flow, gpm (Lpm) |
24,7 (93,5) |
| Steering Pump Flow, gpm (Lpm) |
16,3 (62,1) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
14806 (6730) |
| Wheelbase, in (mm) |
107,1 (2719) |
| Length, in (mm) |
185 (4700) |
| Height, in (mm) |
117 (2970) |
| Overall Width, in (mm) |
84 (2130) |
| Ground Clearance, in (mm) |
20 (500) |
| Turning Radius, in (mm) |
183 (4655) |
| Shipping Weight, lb (kg) |
11990 (5450) |
| Operating Weight, lb (kg) |
13530 (6150) |
| Maximum Weight, lb (kg) |
20900 (9500) |
