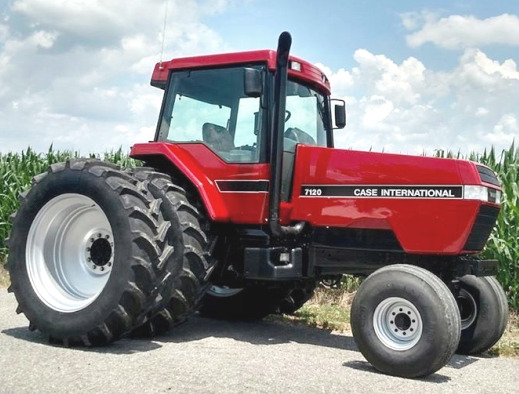

Case IH 7120 Magnum Tractor

The Case IH 7120 is a Magnum series row-crop tractor. This model was manufactured from 1987 to 1993. Case IH 7120 tractor is powered by Case-International 6T-830 6-cylinder 12-valve turbocharged diesel engine with a maximum power of 183 hp (135,6 kW) at 2200 rev/min.

This model fitted with 2 transmission options: 18x2 full powershift transmission, or 24x3 powershift with creeper transmission. Max. forward speed - 18,3 mph (29,4 kph), maximum reverse speed - 2,9 mph (4,7 kph).

The closed center hydraulic system includes a piston pump with rated capacity of 22 gpm (83,3 lpm). The hydraulic system pressure is 180 bar (2600 psi). The front tire size is 11.00x16 (2WD) or 13.6R28 (4WD). The rear tire size is 18.4R38. The Case IH 7120 Magnum 4WD weight is 15920 lbs (7220 kg).

Engine
Engine Model Case-International 6T-830
Engine Type 6-cylinder, 12-valve, turbocharged diesel
Number of Cylinders 6, vertical inline
Displacement, cu in (L) 505 (8,3)
Engine Bore, in (mm) 4,49 (114,0)
Engine Stroke, in (mm) 5,32 (135,0)
Aspiration Turbocharged
Rated Engine Power, hp (kW) 183,0 (135,6)
Rated Engine Speed, rpm 2200
Idle Speed, rpm 825-2395
Compression 17.3:1
Firing Order 1-5-3-6-2-4
Fuel Injection Pump Bosch PS6A
Valve Clearance (Intake), in (mm) 0,012 (0,305)
Valve Clearance (Exhaust), in (mm) 0,024 (0,609)
Fuel Tank Capacity, gal (L) 78,0 (295,0)
Oil Capacity, qts (L) 22,0 (21,0)
Coolant Capacity, qts (L) 30,0 (28,6)
Electrical System Rating, Volts 12
Alternator Rating, Amps 110

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 150,0 (111,9)
PTO Speeds, rpm 1000
PTO / Engine Speeds, rpm 1000/2200
PTO Clutch Wet disc

Standard Transmission
Transmission Type 18F/2R, Full power shift
Number of Forward Gears 18
Number of Reverse Gears 2
Clutch Hydraulic wet disc
Maximum Speed (Forward), mph (kph) 18,3 (29,4)
Maximum Speed (Reverse), mph (kph) 2,9 (4,7)

Optional Transmission
Transmission Type 24F/3R, Powershift with creeper
Number of Forward Gears 24
Number of Reverse Gears 3
Maximum Speed (Forward), mph (kph) 18,3 (29,4)
Maximum Speed (Reverse), mph (kph) 2,9 (4,7)
Maximum Forward Speed (Creeper), mph (kph) 2,0 (3,2)
Maximum Reverse Speed (Creeper), mph (kph) 0,7 (1,1)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Service Brake Differential hydraulic wet disc
Front Tire Size (2WD) 11.00-16
Rear Tire Size (2WD) 18.4R38
Front Tire Size (4WD) 13.6R28
Rear Tire Size (4WD) 18.4R38

Hydraulic System
Hydraulic System Type Closed center (PFC)
Implement Pump Flow, gpm (Lpm) 22,0 (83,3)
Total Flow, gpm (Lpm) 29,0 (110,0)
Hydraulic Pressure, Bar (psi) 180 (2600)
Hydraulic Capacity, gal (L) 50,5 (191,0)
Number of Standard Remote Valves 2/4
3-Point Hitch Category 3/3N
Draft Sensing or Lift Control Electronic lower link
Standard Lift Capacity 24-in behind pin, lb (kg) 8300 (3760)

Dimensions and Weight
Wheelbase, in (mm) 118,3 (3000)
Length (2WD), in (mm) 191 (4850)
Length (4WD), in (mm) 197,7 (5020)
Height (2WD), in (mm) 118,2 (2995)
Height (4WD), in (mm) 117,4 (2980)
Ground Clearance (2WD), in (mm) 22,4 (560)
Ground Clearance (4WD), in (mm) 16,6 (420)
Front Tread (2WD), in (mm) 60-86 (1520-2180)
Front Tread (4WD), in (mm) 60-95 (1520-2410)
Rear Tread, in (mm) 60-125 (1520-3170)
Weight (2WD), lb (kg) 15920 (7220)
Weight (4WD), lb (kg) 17220 (7810)
