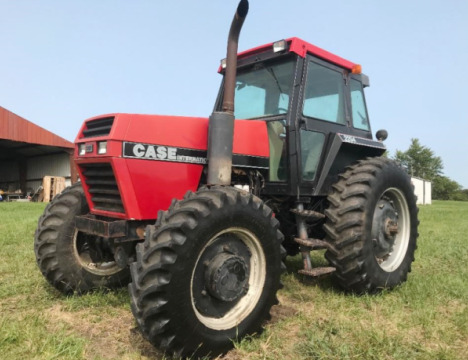

Case IH 2294 Tractor

The Case IH 2294 is a four-wheel drive or two-wheel drive row-crop tractor. This model was manufactured between 1984 and 1988. The components of IH 2294 powerline system: 504 cu.in (8.3 L) Case 504BDT six-cylinder turbocharged diesel engine and 3-speed power shift transmission with 12 forward and 3 revers gears.

The engine has a cylinder bore of 4.63" (117 mm), piston stroke of 5.0" (127 mm), rated power of 154 Hp (114.8 kW), and maximum torque of 637 Nm (471.8 lb-ft) at 1575 rpm. The maximum travel speed (forward and reverse) is 18.1 mph (29.2 kph) and 8.1 mph (12.2 kph).

The closed center hydraulic system used a piston pump with rated capacity of 23 gallons per minute (87 liters per minute). The hydraulic system pressure is 2250 psi (155 bar). The rear lift capacity is 6600 lbs (2995 kg) at 600mm behind pin. The 2WD models are equipped with 11.00x16 front tyres and 18.4x38 rear tyres. The 14.9x28 front tyres and 18.4x38 rear tyres fit 4WD tractors. The wheelbase is 104 inches (2640 mm).

Engine
Engine Model Case 504BDT
Engine Type 4 stroke, Six-cyl. turbocharged diesel
Number of Cylinders 6
Displacement, cu in (L) 504 (8,3)
Engine Bore, in (mm) 4,63 (117,0)
Engine Stroke, in (mm) 5,00 (127,0)
Aspiration Turbocharged
Rated Engine Power, hp (kW) 153,9 (114,8)
Rated Engine Speed, rpm 2100
Maximum Torque, Nm (ft-lbs) 637 (471,8)
Max Torque Speed, rpm 1575
Compression 15,8:1
Fuel Tank Capacity, gal (L) 65,0 (246,0)
Oil Capacity, qts (L) 24,0 (22,8)
Coolant Capacity, qts (L) 38,0 (36,0)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 72/105

Power Take-Off
Rear PTO Standard
PTO Operational Type Independent
PTO Horsepower, hp (kW) 130,0 (97,0)
PTO Speeds, rpm 540/1000

Transmission
Transmission Type 3-Speed power shift
Gearbox Type 12F/3R
Number of Forward Gears 12
Number of Reverse Gears 3
Power Shift Steps 3
Oil Capacity, qts (L) 101,0 (94,7)
Maximum Forward Speed, mph (kph) 18,1 (29,2)
Maximum Reverse Speed, mph (kph) 8,1 (12,9)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front steer
Steering System Hydrostatic power
Service Brake Differential hydraulic wet disc
Front Tire Size (2WD) 11.00x16
Rear Tire Size (2WD) 18.4-38
Front Tire Size (4WD) 14.9-28
Rear Tire Size (4WD) 18.4-38

Hydraulic System
Hydraulic System Type Closed center
Implement Pump Flow, gpm (Lpm) 23,0 (87,1)
Steering Pump Flow, gpm (Lpm) 8,1 (30,4)
Hydraulic System Capacity, gal (L) 25,0 (95,0)
Hydraulic Pressure, bar (psi) 155,2 (2250)
Steering Pressure, bar (psi) 137,5 (2000)
Number of Standard Remote Valves 2 to 4 (4WD only)
3-Point Hitch Type Rear
3-Point Hitch Category 3/2
Standard Lift Capacity 600mm behind pin, lb (kg) 6600 (2995)

Dimensions and Weight
Wheelbase, in (mm) 104 (2640)
Height, in (mm) 117 (2960)
Rear Tread, in (mm) 60 to 88 (1520 to 2230)
Shipping Weight, lb (kg) 11045 (5019)
Operating Weight, lb (kg) 13700 (6220)
Total weight (Maximum), lb (kg) 16570 (7525)
