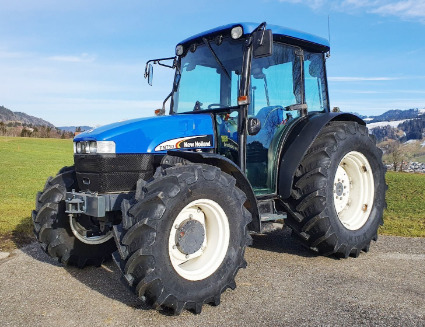

New Holland TN75D Tractor
The
New Holland TN75D is a TN series utility tractor. This model was manufactured
from 1999 to 2003. New Holland TN75D is powered by 179 cubic inches Iveco
8035.25 4 stroke 3 cyl. direct injection turbocharged diesel engine with a max.
output power of 75 hp (55.9 kw) and 298 Nm (220.5 lb-ft) of peak torque at 1400
rev/min.
The NH TN75D tractor is fitted with 2 transmission options: 16x16 shuttle
command transmission, or split command creeper transmission with 44
forward and 16 reverse gears. The maximum travel speed (forward) is 18.7
mph (30 km/h).
The open center hydraulic system used a gear pump with
rated capacity of 16.9 gpm (64 lpm). The main relief pressure is 2755
psi (190 bar). The 2-wheel drive models are equipped with 10.00x16 front
tyres and 16.9R30 rear tyres. The 11.2R24 front tyres and 16.9R30 rear
tyres fit 4-wheel drive tractors. The wheelbase is 83.9 inches (2130 mm)
for 2WD models and 81.5 inches (2070 mm) for 4WD models. The tractor can
be equipped with NH 32LA front end loader.
| Engine Model |
Iveco 8035.25 |
| Engine Type |
Three cyl., 4 stroke direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
179,0 (2,93) |
| Engine Bore, in (mm) |
4,10 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
75,0 (55,9) |
| Rated Engine Power, hp (kW) |
72,4 (54,0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
298 (220,5) |
| Torque Speed, rpm |
1400 |
| Compression |
18:1 |
| Fuel Tank Capacity, gal (L) |
19,8 (75,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
63,9 (47,7) |
| PTO Speeds, rpm |
540 |
| PTO Clutch |
Dry disc |
| Transmission Type |
Shuttle Command |
| Gearbox Type |
16F/16R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Dry disc |
| Maximum Speed Forward, mph (kph) |
18,7 (30,0) |
| Transmission Type |
Split Command (with Creeper) |
| Gearbox Type |
16F/16R |
| Number of Forward Gears |
16 (44) |
| Number of Reverse Gears |
16 (16) |
| Clutch Type |
Dry disc |
| Maximum Speed Forward, mph (kph) |
18,7 (30,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Front Tire Size |
11.2 R24 |
| Rear Tire Size |
16.9 R30 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
16,9 (64,0) |
| Steering Pump Flow, gpm (Lpm) |
7,2 (27,3) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Hydraulic Capacity, gal (L) |
11,1 (42,0) |
| Number of Standard Remote Valves |
2 to 3 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
5880 (2670) |
| Wheelbase (2WD), in (mm) |
83,9 (2130) |
| Wheelbase (4WD), in (mm) |
81,5 (2070) |
| Length, in (mm) |
157 (3990) |
| Height, in (mm) |
92 (2340) |
| Overall Width, in (mm) |
67.2 (1700) |
| Turning Radius, in (mm) |
150 (3810) |
| Weight (2WD), lb (kg) |
5645 (2560) |
| Weight (4WD), lb (kg) |
6460 (2930) |
