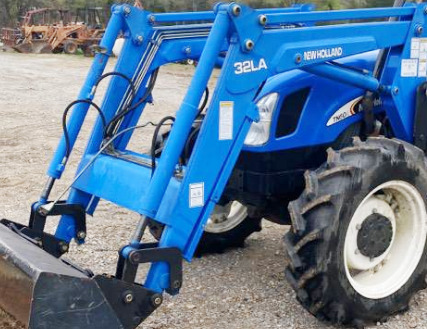

New Holland 32LA Front End Loader

The New Holland 32LA non self-leveling or mechanical self-leveling loader is available for New Holland TN75, TN70, TN65, TN55 tractors. The loader has double acting hydraulic bucket and lift cylinders.

The loader has a maximum lift height of 123" (3120 mm) at pin and reach at full height of 34.5" (870 mm) for NSL or 29" (730 mm) for MSL. The lift capacity at full height (bucket pin) is 3400 lbs (1542 kg) for NSL or 3275 lbs (1485 kg) for MSL, and breakout force is 5845 lbs (2651 kg) for NSL or 5880 lbs (2667 kg) for MSL.

Compatible buckets for the New Holland 32LA front-end loader: a 72" (1820 mm) standard material bucket with a heaped capacity of 21.3 cu.ft (0.61 m3), or 84" (2130 mm) standard material bucket with a heaped capacity of 24.9 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models New Holland TN75, TN70, TN65, TN55
Front Tire Sizes 8.30x24
Rear Tire Sizes 14.9x28
Pump Capacity, gpm (lpm) 17.0 (64.0)

Loader
Loader Model New Holland 32LA
Leveling System Non-self leveling (NSL) / Mechanical self leveling (MSL)
Weight, lb (kg) 1035 (470)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)


Loader Dimensions
Maximum Lift Height at Pivot Pin, in (mm) 123 (3120)
Reach at Maximum Height (NSL), in (mm) 34.5 (870)
Reach at Maximum Height (MSL), in (mm) 29 (730)
Maximum Dump Angle (NSL), deg 38
Maximum Dump Angle (MSL), deg 55
Maximum Rollback Angle (NSL), deg 18
Maximum Rollback Angle (MSL), deg 37

Operating Data
Lift Capacity to Maximum Height at Pin (NSL), lbs (kg) 3400 (1542)
Lift Capacity to Maximum Height at Pin (MSL), lbs (kg) 3275 (1485)
Lift Capacity to Maximum Height at 31.5" (0.8m) from Pin (NSL), lbs (kg) 2304 (1045)
Lift Capacity to Maximum Height at 31.5" (0.8m) from Pin (MSL), lbs (kg) 3135 (1422)
Breakout Force at Pin (NSL), lbs (kg) 5845 (2651)
Breakout Force at Pin (MSL), lbs (kg) 5880 (2667)
Breakout Force at 31.5" (0.8m) from Pin (NSL), lbs (kg) 3990 (1809)
Breakout Force at 31.5" (0.8m) from Pin (MSL), lbs (kg) 5050 (2290)
