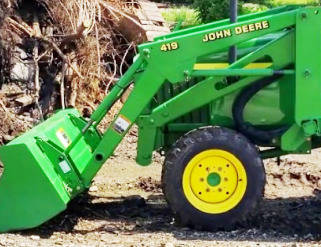

John Deere 419 Front End Loader

The John Deere 419 non self-leveling loader fits JD 790 tractor. The front end loader has double acting hydraulic lift and bucket cylinders.

The John Deere 419 front end loader has a lift capacity (at bucket pin) of 276 kg (610 lbs) to full height of 2232 mm (88 in), breakout force of 735 kg (1616 lbs) at pin or 625 kg (1378 lbs) at 500 mm (19.8 in) forward of pin, and bucket rollback force of 582 kg (1281 lbs) at maximum height.

The bucket dump clearance is 1685 mm (66.3 in) at max dump angle of 45 degrees. The 53" (1350 mm) heavy-duty material bucket has a heaped capacity of 0.22 m3 (7.8 cu.ft). The 61" (1550 mm) and 73" (1850 mm) buckets are also available.

Compatible Tractors
Tractor Model JD 790
Wheelbase 1550 mm (61 in)
Front Tires 7.00-14 6PR R1
Rear Tires 11.2-24 4PR R1
Hydraulic System Rated Flow 22 L/Min (5.8 gal/min)
Maximum Pressure 141 bar (2045 psi)

Loader
Loader Model JD 419
Leveling Configuration Non Self-Leveling
Weight 326 kg (718 lbs)

Heavy-Duty Material Bucket
Width 1350 mm (53 in)
Length 618 mm (24.3 in)
Weight 77 kg (169 lbs)


Loader Dimensions
Lift Height (Maximum) To Pivot Pin 2232 mm (88 in)
Clearance, Bucket Level 2070 mm (81.5 in)
Clearance, Bucket Dumped 1685 mm (66.3 in)
Overall Length 2860 mm (112.6 in)
Digging Depth 64 mm (2.5 in)
Overall Height In Carry Position 1426 mm (56 in)
Reach at Maximum Lift Height with Bucket Dumped 908 mm (39.7 in)
Reach at Bucket on Ground with Bucket Leveled 1308 mm (51.5 in)
Maximum Dump Angle 45 deg
Maximum Dump Angle at Ground 116 deg
Maximum Rollback Angle 23.4 deg
Maximum Rollback Angle at Full Height 99 deg

Operating Data
Lift Capacity to Max Height at Pivot Point 276 kg (610 lbs)
Lift Capacity to Max Height at 500 mm (19.7") Forward of Pivot Point 239 kg (527 lbs)
Lift Capacity to 1.5 m (59") Height at Pivot Point 376 kg (829 lbs)
Lift Capacity to 1.5 m (59") Height at 500 mm (19.7") Forward of Pivot Point 331 kg (730 lbs)
Lift Capacity with Forklift to Max Height 209 kg (460 lbs)
Breakout Force at Pivot Point 735 kg (1616 lbs)
Breakout Force at 500 mm (19.8") Forward of Pivot Point 625 kg (1378 lbs)
Bucket Rollback Force at Maximum Height 582 kg (1281 lbs)
Bucket Rollback Force at 1.5 m (59") Lift Height 633 kg (1394 lbs)
Bucket Rollback Force at Ground Level Line 510 kg (1124 lbs)
