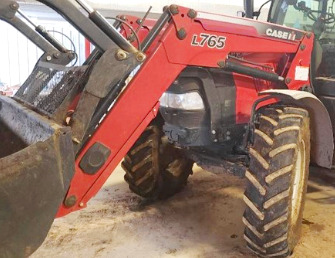

Case L765 Front End Loader

The Case IH L765 loader fits Case IH Puma 170, 185, and Case IH Maxxum 140 tractors. The loader has double acting lift and bucket hydraulic cylinders.

The Case IH L765 loader has a lifting capacity (at pin) of 6173 lbs (2800 kg) to full height of 166.5" (4230 mm) and breakout force (bucket on ground) of 6909 lbs (3134 kg). The clearance with a bucket dumped is 128.7" (3270 mm) at max dump angle of 52 degrees.

The estimated cycle times are 4.1 seconds lifting to full height, and 3.1 seconds to full bucket dump. Available buckets for the Case IH L765 loader: 84" (2130 mm) standard material bucket with nominal heaped capacity of 24.9 cu.ft (0.71 m3), and 95" (2420 mm) standard material bucket with nominal heaped capacity of 28.6 cu.ft (0.82 m3).

Compatible Tractors
Tractor Models Case IH Puma 170, 185, Case IH Maxxum 140
Front Tires 420/85R30
Rear Tires 520/85R42
Hydraulic System Flow, gpm (lpm) 26.0 (100.3)

Loader
Loader Model Case IH L765 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1384 (630)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

95" Standard Material Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 22.5 (0.64)
Heaped Capacity, cu.ft (m3) 28.6 (0.82)
Weight, lb (kg) 580 (264)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 166.5 (4230)
Maximum lift height under level bucket, in (mm) 154 (3930)
Clearance with bucket dumped, in (mm) 128.7 (3270)
Reach at maximum lift height, in (mm) 31.9 (810)
Reach with bucket on ground level, in (mm) 101.2 (2570)
Maximum dump angle, degrees 52
Maximum rollback angle, degrees 44
Digging Depth, in (mm) 6.3 (160)

Operating Data
Lift Capacity to maximum height, at bucket pivot pin (NSL), lbs (kg) 6173 (2800)
Lift Capacity to maximum height, at bucket pivot pin (MSL), lbs (kg) 6085 (2760)
Lift Capacity to max. height, 31.5" (0.8m) forward of bucket pivot pin (NSL), lbs (kg) 4486 (2080)
Lift Capacity to max. height, 31.5" (0.8m) forward of bucket pivot pin (MSL), lbs (kg) 5534 (2510)
Lift Capacity to 1.5m height, at bucket pivot pin (NSL), lbs (kg) 6261 (2840)
Lift Capacity to 1.5m height, 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 4255 (1930)
Lift Capacity to 1.5m height, at bucket pivot pin (MSL), lbs (kg) 6173 (2800)
Lift Capacity to 1.5m height, 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5663 (2570)
Breakout force, at pivot pin, bucket at ground (NSL), lbs (kg) 6909 (3134)
Breakout force, at pivot pin, bucket at ground (MSL), lbs (kg) 6812 (3090)
Breakout force, 31.5" (0.8m) forward of bucket pivot pin at ground (NSL), lbs (kg) 4585 (2080)
Breakout force, 31.5" (0.8m) forward of bucket pivot pin at ground (MSL), lbs (kg) 5754 (2610)
Bucket rollback force at maximum height (NSL), lbs (kg) 4718 (2140)
Bucket rollback force at ground level (NSL), lbs (kg) 7209 (3270)
Bucket rollback force at maximum height (MSL), lbs (kg) 6371 (2890)
Bucket rollback force at ground level (MSL), lbs (kg) 9590 (4350)

Cycle Times
Raise time to full height, sec 4,1
Lower time, sec 3,3
Bucket dump time, sec 3,1
Bucket Rollback, sec 3,1
