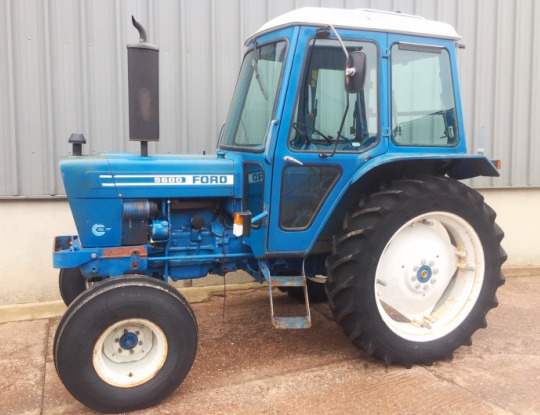

Ford 5600 Tractor

The Ford 5600 tractor was manufactured from 1982 to 1984. The Ford 5600 driveline system components: Ford 4-cylinder liquid-cooled diesel engine and 8x2 gear transmission, or Dual power transmission with 16 forward and 4 reverse gears.

A 233 cubic inches (3.8 L) engine has a cylinder bore of 4.2" (107 mm), piston stroke of 4.2" (107 mm), rated power of 69 hp (51.5 kW), and maximum torque of 247 Nm (182 lb-ft) at 1200 rpm. The maximum travel speed (forward/reverse): 16.8 mph (27 km/h) and 8.1 mph (13 km/h).

The open center hydraulic system used a gear pump with rated capacity of 9.7 gpm (36.8 lpm). The hydraulic pressure is 145 bar (2100 psi). The rear hitch lift capacity is 3340 lbs (1515 kg) at pin. The Ford 5600 tractor is equipped with 7.50x16 front tires, 16.9x30 rear tires, differential mechanical wet disc brakes, and power steering system. The wheelbase is 87.5 inches (2220 mm).

Engine
Engine Model Ford
Engine Type Four stroke, 4-cylinder liquid-cooled diesel
Engine Gross Power, hp (kw) 69.0 (51.5)
Cylinders 4
Engine Bore, in (mm) 4.20 (107.0)
Engine Stroke, in (mm) 4.20 (107.0)
Displacement, cu.in (L) 233 (3.81)
Compression Ratio 16.3:1
Firing Order 1-3-4-2
Low Idle Speed, rpm 775
High Idle Speed, rpm 2375
Rated Speed, rpm 2100
Maximum Torque, Nm (lb-ft) 247 (182)
Torque Speed, rpm 1200
Valve Clearance (Intake), in (mm) 0.014-0.018 (0.36-0.46)
Valve Clearance (Exhaust), in (mm) 0.017-0.021 (0.43-0.53)
Coolant Pump Type Impeller
Fuel Capacity, gal (L) 19.0 (71.8)
Cooling System Capacity, qts (L) 13.0 (12.3)
Engine Oil Capacity, qts (L) 9.0 (8.5)
Electrical System Rating, Volts 12
Alternator Rating, Amps 51

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 60.5 (45.1)
PTO Speed (Std), rpm 540
PTO / Engine Speed (Std), rpm 540/1900
PTO Speed (Opt), rpm 1000

Standard Transmission
Transmission Type Gear
Gearbox Type 8F/2R
Number of Forward Gears 8
Number of Reverse Gears 2
Clutch Type Dry disc
Maximum Forward Speed, mph (kph) 16.8 (27.0)
Maximum Reverse Speed, mph (kph) 8.1 (13.0)

Optional Transmission
Transmission Type Dual-Power
Gearbox Type 16F/4R, 2-Speed powershift
Number of Forward Gears 16
Number of Reverse Gears 4
Clutch Type Dry disc
Maximum Forward Speed, mph (kph) 16.1 (25.8)
Maximum Reverse Speed, mph (kph) 7.7 (12.5)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Power
Service Brake Differential mechanical wet disc
Front Tire Size 7.50-16
Rear Tire Size 16.9-30
Front Tread, in (mm) 52.5-80.5 (1330-2040)
Rear Tread, in (mm) 52-80 (1320-2030)

Hydraulic System
Hydraulic System Type Open center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 9.7 (36.8)
Steering Pump Flow, gpm (Lpm) 3.6 (13.5)
Hydraulic Pressure, Bar (psi) 145 (2100)
Number of Standard Remote Valves 1 or 2
3-Point Hitch Category 2
Draft Sensing or Lift Control Top-link draft sensing
Standard Lift Capacity at lift pin, lb (kg) 3340 (1515)

Dimensions and Weight
Wheelbase, in (mm) 87.5 (2220)
Overall Length, in (mm) 141.6 (3590)
Height (Hood), in (mm) 60.9 (1540)
Height (Cab), in (mm) 106.6 (2700)
Width, in (mm) 72.2 (1830)
Ground Clearance, in (mm) 18 (450)
Turning Radius, in (mm) 138.3 (3500)
Weight (with Cab), lb (kg) 5910 (2680)
Weight (without Cab), lb (kg) 7310 (3315)
