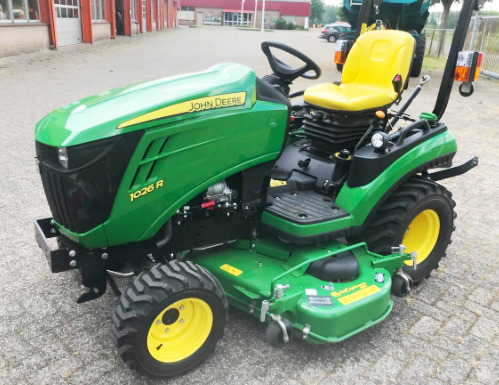

John Deere 1026R Tractor

The John Deere 1026R is a 4-wheel drive sub-compact utility tractor. This model was manufactured between 2011 and 2012. The JD 1026R driveline consists of Yanmar 3TNV76 vertical 3-cylinder indirect injection naturally aspirated diesel engine and 2-range hydrostatic transmission with infinite forward and reverse gears.

A 68.1 cu.in (1.1 L) engine has a cylinder bore of 2.99" (76 mm), piston stroke of 3.23" (82 mm), and rated power of 25.2 hp (18.5 kW). Max. travel speed: 4.1 mph (6.6 km/h) using a low range, and 9.1 mph (14.6 km/h) using a high range.

The open center hydraulic system includes a gear pump with a flow rate of 3.5 gal/min (13.2 l/min). The main relief pressure is 2000 psi (138 bar). The John Deere 1026R was equipped with 18x8.50-10 front tires and 26x12.00-12 rear tires. The wheelbase is 57.1" (1450 mm).

The tractor is compatible with a 54" mid-mount John Deere 54D AutoConnect mower deck, 60" mid-mount John Deere 60D AutoConnect mower deck, John Deere D120 loader with lift capacity to max height of 825 lbs (374 kg), and John Deere H120 loader with ift capacity to max height of 836 lbs (379 kg).

Engine
Engine Model Yanmar 3TNV76
Engine Type Vertical three-cylinder indirect injection diesel
Number of Cylinders 3, Inline
Displacement, cu.in (L) 68.1 (1.116)
Engine Bore, in (mm) 2.99 (76.0)
Engine Stroke, in (mm) 3.23 (82.0)
Engine Power, Rated, hp (kW) 25.2 (18.5)
Rated Engine Speed, rpm 3200
Aspiration Naturally aspirated
Compression Ratio 23.5:1
Firing Order 1-3-2
Block Design Cast-in-block
Fuel System In-line pump system
Fuel System Control Mechanical
Fuel Injection to Combustion Chamber Indirect
Lubricating System Forced lubrication with trochoid pump
Oil Filter Type Spin on filter
Cooling System Liquid-cooled with radiator
Air Cleaner Replaceable, paper elements
Emission Level Tier 4
Fuel Tank capacity, gal (L) 5.6 (21.2)
Oil capacity, qts (L) 2.9 (2.7)
Coolant Capacity, qts (L) 4.0 (3.8)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 40

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 18.0 (13.4)
Rear PTO Speed, rpm 540
Rear PTO / Engine Speed, rpm 540/3200
Mid PTO Speed, rpm 2100
Mid PTO / Engine Speed, rpm 2100/3200

Transmission
Transmission Type Hydrostatic
Number of Forward Gears Infinite (2-range)
Number of Reverse Gears Infinite (2-range)
Oil Capacity, qts (L) 13.0 (12.3)
Maximum Forward Speed (Low), mph (kph) 4.1 (6.6)
Maximum Forward Speed (High), mph (kph) 9.1 (14.6)
Maximum Reverse Speed (Low), mph (kph) 4.1 (6.6)
Maximum Reverse Speed (High), mph (kph) 9.1 (14.6)


Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front steer
Steering System Hydrostatic power
Brakes Type Wet disc
Front Tire Size 18x8.50-10
Rear Tire Size 26x12.00-12
Front Tread, in (mm) 32.2 (810)
Rear Tread, in (mm) 35.2 (890)

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 3.5 (13.2)
Steering Pump Flow, gpm (Lpm) 2.8 (10.6)
Hydraulic Pressure, Bar (psi) 138 (2000)
Hydraulic Fluid Capacity, gal (L) 3.3 (12.5)
Number of Standard Remote Valves 2/3
3-Point Hitch Category Limited 1
Draft Sensing or Lift Control Position Control
Lift Capacity at 24" (610mm) behind pin, lb (kg) 680 (308)
Lift Capacity at pin, lb (kg) 1435 (650)

Dimensions and Weight
Wheelbase, in (mm) 57.1 (1450)
Length, in (mm) 87.6 (2220)
Height (ROPS), in (mm) 78.6 (1990)
Height (Hood), in (mm) 41.5 (1050)
Overall Width, in (mm) 47.2 (1190)
Ground Clearance, in (mm) 12.3 (310)
Turning Radius, in (mm) 90.6 (2300)
Weight, lb (kg) 1445 (655)
