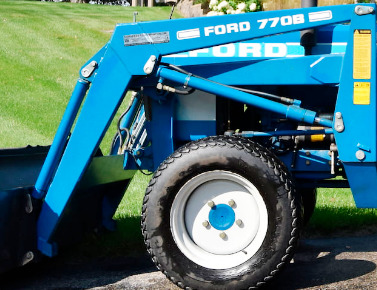

Ford 770B Front End Loader
The
Ford 770B front end loader was designed for Ford 1310, 1510, and Ford 1710
tractors. The loader is equipped with double acting hydraulic lift and bucket
cylinders.
The Ford 770B loader’s maximum lift height is 93 inches (2360 mm) at pin
and clearance with bucket dumped is 75 inches (1900 mm).
The lift capacity is 820 lbs (370 kg) at maximum height (pivot pin), and
boom breakout force is 1420 lbs (644 kg).
The estimated cycle times are 5.2 seconds raising to maximum height, and
3.1 seconds maximum bucket rollback. The Ford 770B loader can be
equipped with a 4 foot standard material bucket with a heaped capacity
of 7.5 cu.ft (0.21 m3), or 5 foot standard material bucket with a heaped
capacity of 9.5 cu.ft (0.27 m3).
| Tractor models |
Ford 1310, 1510, 1710 |
| Front tires |
6.0x16 |
| Rear tires |
11.2x24 |
| Hydraulic system flow, gpm (lpm) |
6.2 (23.5) |
| Hydraulic pressure, bar (psi) |
147 (2130) |
| Loader model |
Ford 770B |
| Attachment control type |
Hydraulic |
| Lift cylinder (Number and type) |
2, Double action |
| Bucket cylinder (Number and type) |
2, Double action |
| Weight, lbs (kg) |
580 (263) |
| Counterweight, lbs (kg) |
600 (275) |
| 4-ft Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
18 (455) |
| Height, in (mm) |
19 (480) |
| Capacity (Struck), cu.ft (m3) |
6,0 (0,17) |
| Capacity (Heaped), cu.ft (m3) |
7,5 (0,21) |
| Weight, lbs (kg) |
230 (105) |
| 5-ft Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Depth, in (mm) |
18 (455) |
| Height, in (mm) |
19 (480) |
| Capacity (Struck), cu.ft (m3) |
7,5 (0,21) |
| Capacity (Heaped), cu.ft (m3) |
9,5 (0,27) |
| Weight, lbs (kg) |
260 (118) |
| Maximum lift height at pivot pin, in (mm) |
93 (2360) |
| Reach at maximum height, in (mm) |
22 (550) |
| Clearance, bucket dumped, in (mm) |
75 (1900) |
| Maximum dumping angle, degrees |
40 |
| Reach, bucket on ground, in (mm) |
61 (1540) |
| Rollback angle, degrees |
10 |
| Maximum digging depth, in (mm) |
5 (127) |
| Lift capacity to maximum height, lbs (kg) |
820 (370) |
| Breakout force at pivot pin, lbs (kg) |
1420 (644) |
| Raising time to full height, sec |
5,2 |
| Lowering time, sec |
2,7 |
| Bucket rollback time, sec |
3,1 |
