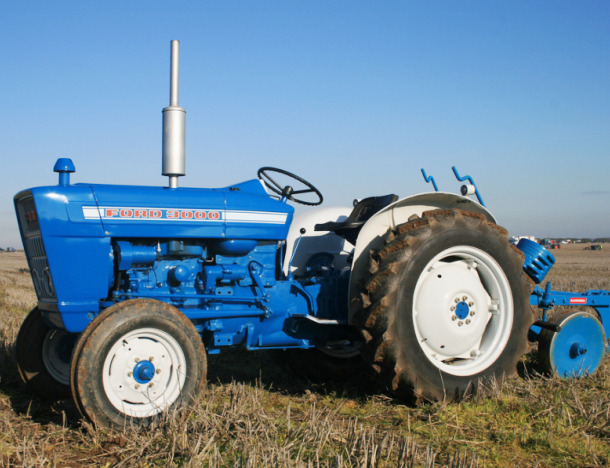

Ford 3000 Tractor
The
Ford 3000 is a two-wheel drive utility tractor. This model was manufactured
between 1965 and 1975.
The tractor is powered by 175 cubic inches Ford 3-cylinder liquid-cooled
diesel engine with a maximum power of 45 hp (33.6 kw), or 158
cubic inches Ford 3-cylinder water-cooled gasoline engine with a max. power of 47
hp (35 kw).
Ford 3000 utility tractor is fitted with 4 types of
transmission.
Type 1: 10x2 full powershift synchronized transmission. Type 2: 4-speed
unsynchronized transmission. Type 3: 8x2 unsynchronized gear
transmission.
Type 4: 6x2 unsynchronized gear transmission.
Max. travel speed (forward and reverse): 22.2 mph (35.7 km/h) / 8 mph
(12.9 km/h). The open center hydraulic system includes a gear pump with
a rated capacity of 5 gpm (18.9 lpm). The main relief pressure is 172 bar
(2500 psi). The tractor was equipped with 6.0x16 front tires and
16.6x28 rear tires. The wheelbase is 75.8" (1920 mm). The Ford 3000 is
compatible with Ford 771 loader with a lifting capacity to full height of
1800 lbs (816 kg), or Ford 772 loader with a lifting capacity to full height
of 2500 lbs (1134 kg).
| Engine Model |
Ford |
| Engine Type |
Vertical, 3-cylinder, water cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
175 (2.9) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.20 (107.0) |
| Rated Engine Power, hp (kW) |
45.0 (33.6) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lbs) |
183 (135) |
| Torque Speed, rpm |
1400 |
| Compression |
16.5:1 |
| Firing Order |
1-2-3 |
| Air Cleaner |
Oil bath |
| Fuel Tank Capacity, gal (L) |
13.0 (49.2) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
13.8 (11.4) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
128 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| Engine Model |
Ford |
| Engine Type |
Vertical, 3-cylinder, water cooled gasoline |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
158 (2.6) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
3.80 (97.0) |
| Rated Engine Power, hp (kW) |
47.0 (35.0) |
| Rated Engine Speed, rpm |
2100 |
| Compression |
8:1 |
| Firing Order |
1-2-3 |
| Air Cleaner |
Dry type |
| Fuel Tank Capacity, gal (L) |
13.0 (49.2) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
13.8 (11.4) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
80 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| PTO Operational Type (Std) |
Independent |
| PTO Operational Type (Opt) |
Transmission / Live |
| PTO Horsepower (Diesel), hp (kW) |
38.0 (28.3) |
| PTO Horsepower (Gasoline), hp (kW) |
37.0 (27.6) |
| PTO Speed (Std), rpm |
540 |
| PTO Speed (Opt), rpm |
540/1000 |
| Transmission Type |
Full powershift |
| Gearbox Type |
10F/2R |
| Number of Forward Gears |
10 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts (L) |
11.0 (10.4) |
| Maximum Forward Speed, mph (kph) |
16.4 (26.5) |
| Maximum Reverse Speed, mph (kph) |
4.6 (7.4) |
| Transmission Type |
4-Speed Unsynchronized |
| Gearbox Type |
12F/3R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Maximum Forward Speed, mph (kph) |
22.2 (35.7) |
| Maximum Reverse Speed, mph (kph) |
6.3 (10.1) |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Maximum Forward Speed, mph (kph) |
17.4 (28.0) |
| Maximum Reverse Speed, mph (kph) |
8.0 (12.9) |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.2 (29.3) |
| Maximum Reverse Speed, mph (kph) |
7.4 (11.9) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Manual (Std) / Power assist (Opt) |
| Service Brake |
Mechanical expanding shoe |
| Front Tire Size (Std) |
5.5-16 |
| Rear Tire Size (Std) |
12.4-28 |
| Front Tire Size (Opt) |
6.0-16 |
| Rear Tire Size (Opt) |
16.6-28 |
| Front Tread, in (mm) |
52.0-80.0 (1320-2030) |
| Rear Tread, in (mm) |
52.0-76.0 (1320-1930) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
5.0 (18.9) |
| Steering Flow, gpm (Lpm) |
4.3 (16.1) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| Steering Pressure, Bar (psi) |
42.0 (600) |
| Hydraulic System Capacity, gal (L) |
6.3 (23.8) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at 600mm behind pin, lb (kg) |
1700 (770) |
| Wheelbase, in (mm) |
75.8 (1920) |
| Length, in (mm) |
127 (3220) |
| Height (Hood), in (mm) |
54 (1370) |
| Height (Exhaust), in (mm) |
83 (2100) |
| Overall Width, in (mm) |
64 (1620) |
| Ground Clearance (Front Axle), in (mm) |
21.5 (540) |
| Ground Clearance (Transmission), in (mm) |
13.4 (340) |
| Weight (Shipping), lb (kg) |
3700 (1680) |
| Weight (Operating), lb (kg) |
4180 (1900) |
| Weight (Ballasted), lb (kg) |
6940 (3150) |
