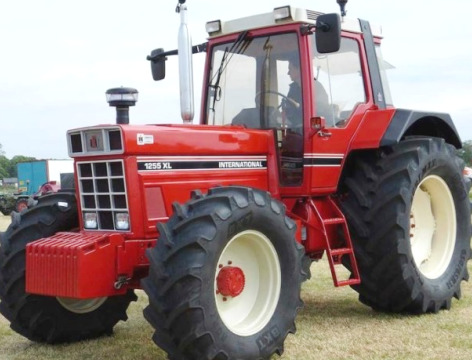

Case IH 1255 XL Tractor
The
Case IH 1255 XL is a two-wheel drive or four-wheel drive row crop tractor. This
model was manufactured from 1985 to 1994. The Case IH 1255XL tractor is powered
by International Harvester DT-358 six-cylinder direct injection turbocharged
diesel engine with a maximum output power of 125 hp (93.2 kW) and 455.6 Nm (336
lb-ft) of peak torque at 1600 rpm.
The Case IH 1255 XL is fitted with two transmission options: 12x5
synchronized transmission and fully synchronized transmission with 20
forward and 9 reverse gears.
The maximum forward speed - 14.5 mph (23.3 km/h), maximum reverse speed
- 13.6 mph (21.9 km/h). The open center hydraulic system includes a gear
pump with fluid flow rate of 11 gpm (41.6 lpm). The hydraulic pressure
is 172 bar (2500 psi). The 2WD models are equipped with 7.50x20 front
tyres and 18.9R38 rear tyres. The 13.6R28 front tyres and 18.4R38 rear
tyres fit 4WD tractors. The wheel base is 110.2 inches (2790 mm).
| Engine Model |
International Harvester DT-358 |
| Engine Type |
Six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
358 (5,90) |
| Engine Bore, in (mm) |
3,88 (98,0) |
| Engine Stroke, in (mm) |
5,06 (129,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
125,0 (93,2) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
455,6 (336) |
| Torque Speed, rpm |
1600 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
52,8 (200,0) |
| Oil Capacity, qts (L) |
13,2 (12,5) |
| Coolant Capacity, qts (L) |
33,8 (32,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
96,0 (71,5) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
12F/5R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
5 |
| Oil Capacity (2WD), qts (L) |
35,9 (34,0) |
| Oil Capacity (4WD), qts (L) |
42,3 (40,0) |
| Maximum Forward Speed, mph (kph) |
14,5 (23,3) |
| Maximum Reverse Speed, mph (kph) |
13,6 (21,9) |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
20F/9R |
| Number of Forward Gears |
20 |
| Number of Reverse Gears |
9 |
| Maximum Forward Speed, mph (kph) |
14,5 (23,3) |
| Maximum Reverse Speed, mph (kph) |
13,6 (21,9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet Disc |
| Front Tire Size (2WD) |
7.50-20 |
| Rear Tire Size (2WD) |
18.9R38 |
| Front Tire Size (4WD) |
13.6R28 |
| Rear Tire Size (4WD) |
18.4R38 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
11,0 (41,6) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
2/3 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
10580 (4500) |
| Wheelbase, in (mm) |
110,2 (2790) |
| Length, in (mm) |
189 (4800) |
| Height, in (mm) |
115,7 (2930) |
| Ground Clearance (2WD), in (mm) |
20,5 (520) |
| Ground Clearance (4WD), in (mm) |
18,5 (460) |
| Front Tread (2WD), in (mm) |
59,8 to 71,6 (1510 to 1810) |
| Front Tread (4WD), in (mm) |
68,5 to 76,4 (1730 to 1940) |
| Rear Tread, in (mm) |
71,6 to 83,6 (1810 to 2120) |
| Weight (2WD), lb (kg) |
11155 (5060) |
| Weight (4WD), lb (kg) |
12521 (5680) |
