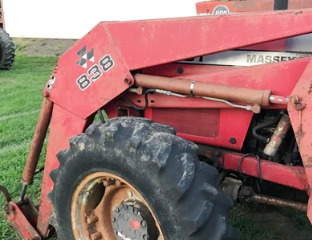

Massey Ferguson 838 Loader

The MF 838 loader fits Massey Ferguson 3050, 3060 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Massey Ferguson 838 front-end loader has a max lift height of 129 in (3270 mm) at pin and bucket dump clearance of 102.5 in (2600 mm).

The lift capacity is 3000 lbs (1360 kg) to max height at pin, and boom breakout force is 4100 lbs (1859 kg). The rated cycle times are 4.1 seconds raising to maximum height, and 3.3 seconds maximum bucket dumping. The MF 838 loader is equipped with a 72" (1830 mm) standard material bucket with a rated capacity of 0.58 m3 (21 cu.ft).

Compatible Tractors
Tractor model MF 3050, 3060
Front tires 12.4x24
Rear tires 18.4x30
Pump capacity, gpm (lpm) 13.2 (50.0)
Hydraulic pressure, psi (bar) 2610 (180)

Standard Material Bucket
Width, in (mm) 72 (1830)
Struck capacity, cu.ft (m3) 16,8 (0,47)
Heaped capacity, cu.ft (m3) 21,0 (0,58)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 129 (3270)
Clearance at full height, bucket dumped, in (mm) 102.5 (2600)
Reach at maximum height, in (mm) 31.5 (800)
Reach at ground, bucket level, in (mm) 77 (1950)
Bucket dump angle, degrees 36
Bucket rollback angle, degrees 20

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 3000 (1360)
Breakout Force at Pivot Pin, lbs (kg) 4100 (1859)

Cycle Times
Loader Raise, sec 4,1
Loader Lower, sec 2,5
Bucket Dump, sec 3,3
Bucket Rollback, sec 2,3
