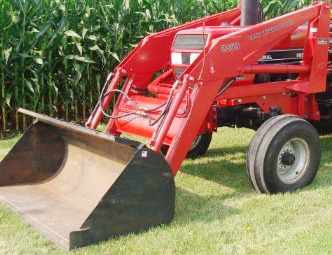

Case 2250 Front End Loader

The Case 2250 loader fits Case IH 395, 495, 595, Case IH 685, 995 tractors.

The 2250 loader is used for the tractor system with a hydraulic pressure of 2500 psi and pump capacity of 15.8 gpm.

The Case IH 2250 loader has a max lift height of 123 inches (3120 mm) at pin and bucket dump clearance of 99 inches (2510 mm) with a 41-degree maximum dump angle. The lift capacity is 2500 lbs (1134 kg) to max height at pin, and boom breakout force is 3500 lbs (1587 kg).

The Case 2250 loader can be equipped with a 72" (1830 mm) standard material bucket with a nominal heaped capacity of 21.3 cu.ft (0.61 m3), or 84" (2130 mm) standard material bucket with a nominal heaped capacity of 24.9 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models Case IH 395, 495, 595, Case IH 685, 995
Front Tires 7.50x16
Rear Tires 16.9x30
Hydraulic System Flow, gpm (lpm) 15.8 (59.7)
Hydraulic Pressure, psi 2500

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)


84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 123 (3120)
Clearance with bucket dumped, in (mm) 99 (2510)
Reach at maximum lift height, in (mm) 37 (930)
Maximum dump angle, degrees 41
Maximum rollback angle, degrees 21

Operating Data
Lift Capacity to maximum height, at bucket pivot pin, lbs (kg) 2500 (1134)
Breakout force at pivot pin, lbs (kg) 3500 (1587)
