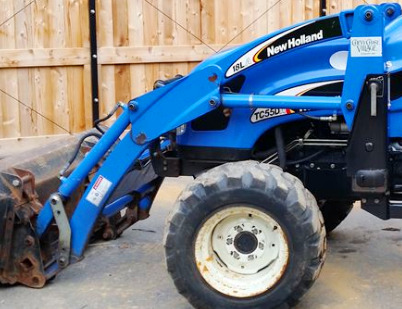

New Holland 18LA Front End Loader
The
New Holland 18LA non self leveling loader is designed for New Holland TC48DA,
TC55DA tractors. The loader hydraulic system includes double-acting hydraulic
lift and bucket cylinders.
The loader’s max lift height is 112.3" (2850 mm) at pin, and clearance
with bucket dumped is 85.2" (2160 mm). The lift capacity is 2500 lbs
(1135 kg) at full height (bucket pin), and breakout force is 5000 lbs
(2270 kg).
The New Holland 18LA front-end loader is compatible with the following
buckets: a 72" (1820 mm) heavy-duty material bucket with a heaped
capacity of 0.64 cu.yd (0.49 m3), or 72" (1820 mm) light material bucket
with a heaped capacity of 0.76 cu.yd (0.58 m3).
| Tractor Models |
New Holland TC48DA, TC55DA |
| Front Tires |
27x10.5-15R3 |
| Rear Tires |
44x18-20R3 |
| Hydraulic System Flow, gpm (lpm) |
12.0 (45.5) |
| Loader Model |
NH 18LA Quick-Attach |
| Leveling System |
Non self leveling |
| Weight (w/o Bucket), lbs (kg) |
820 (370) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, cu.yd (m3) |
0.53 (0.40) |
| Heaped Capacity, cu.yd (m3) |
0.64 (0.49) |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, cu.yd (m3) |
0.65 (0.49) |
| Heaped Capacity, cu.yd (m3) |
0.76 (0.58) |
| Maximum Lift Height to Pivot Pin, in (mm) |
112.3 (2850) |
| Clearance with Bucket Dumped, in (mm) |
85.2 (2160) |
| Clearance with Level Bucket, in (mm) |
104.4 (2650) |
| Reach at Maximum Lift Height, in (mm) |
32 (810) |
| Digging Depth, in (mm) |
4.9 (124) |
| Maximum Dump Angle, degrees |
49 |
| Reach with Bucket on Ground, in (mm) |
79 (2000) |
| Maximum Rollback Angle, degrees |
39 |
| Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) |
2500 (1135) |
| Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
1830 (830) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) |
3500 (1585) |
| Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
2215 (1000) |
| Max Breakout Force at Bucket Pivot Point, lbs (kg) |
5000 (2270) |
| Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
3115 (1410) |
