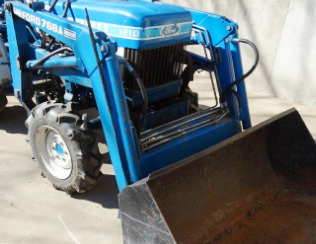

Ford 768A Front End Loader

The Ford 768A loader is used for Ford 1110, 1200, and 1210 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders.

The Ford 768A loader’s maximum lift height is 70 in (1770 mm) at pin and bucket dump clearance is 52 in (1320 mm).

The lift capacity is 530 lbs (240 kg) at max. height (pivot pin), and breakout force (bucket on ground) is 980 lbs (440 kg). The rated cycle times are 3 seconds raising to maximum height, and 4.1 seconds full bucket rollback.

The Ford 768A loader is compatible with a 40" (1010 mm) standard material bucket with a heaped capacity of 6.3 cu.ft (0.15 cu.m), or 48" (1220 mm) standard material bucket with a heaped capacity of 7.5 cu.ft (0.21 cu.m).

Compatible Tractors
Tractor models Ford 1110, 1200, 1210
Front tires 5.00x12
Rear tires 8.00x16
Hydraulic system flow, gpm (lpm) 4.3 (16.5)
Hydraulic pressure, bar (psi) 127 (1850)

Loader
Loader model Ford 768A
Attachment control type Hydraulic/Mechanical
Weight, lbs (kg) 540 (245)

40" Standard Material Bucket
Width, in (mm) 40 (1010)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 4,9 (0,14)
Capacity (Heaped), cu.ft (m3) 6,3 (0,15)
Weight, lbs (kg) 200 (90)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)


Loader Dimensions
Maximum lift height at pivot pin, in (mm) 70 (1770)
Reach at maximum height, in (mm) 23 (582)
Clearance, bucket dumped, in (mm) 52 (1320)
Maximum dumping angle, degrees 40
Reach, bucket on ground, in (mm) 47.5 (1200)
Rollback angle, degrees 8
Maximum digging depth, in (mm) 4.5 (114)

Operating Data
Lift capacity to maximum height, lbs (kg) 530 (240)
Breakout force at pivot pin, lbs (kg) 980 (440)

Cycle Times
Raising time to full height, sec 6,1
Lowering time, sec 3,5
Bucket rollback time, sec 4,1
