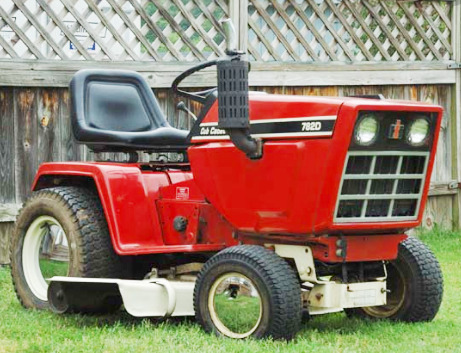

Cub Cadet 782D Garden Tractor
The
Cub Cadet 782D is a CCC-82 series diesel garden tractor. This model was
manufactured from 1984 to 1985. The Cub Cadet 782D driveline system components:
Kubota D600-B 4-stroke 3-cylinder liquid-cooled naturally aspirated diesel
engine and Sundstrand shaft-driven hydrostatic transmission with infinite
forward and reverse gears.
A 37 cubic inches (606 cc) engine has a cylinder bore of 2.52" (64 mm),
piston stroke of 2.45" (62 mm), and max power of 15 hp (11.2 kW). The
maximum forward speed - 8.6 mph (13.9 kph), maximum reverse speed - 4.3
mph (6.8 kph).
The tractor is equipped with a manual steering, disc brakes, 15x6.50-8
front tires, and 23x10.50-12 rear tires. The wheel base is 44 in (1110
mm). Compatible attachments for the Cub Cadet 782D tractor: a 38"
mid-mount 2-blade mower deck, 44" or 50" mid-mount 3-blade
right-discharge mower decks with cutting height of 1.0-4.0 in (25-102
mm) and hydraulic lift system.
| Engine Model |
Kubota D600-B |
| Engine Type |
4-stroke, 3-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
37.0 (0.606) |
| Aspiration |
Naturally aspirated |
| Engine Bore, in (mm) |
2.52 (64.0) |
| Engine Stroke, in (mm) |
2.45 (62.0) |
| Maximum Engine Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
2600-3800 |
| Maximum Torque, Nm (ft-lb) |
34.6 (25.2) |
| Torque Speed, rpm |
2600 |
| Fuel System |
Bosch fuel injection |
| Fuel Tank Capacity, gal (L) |
4.0 (15.2) |
| Oil Capacity, qts (L) |
3.0 (2.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 13A |
| Starter Type |
Electric |
| Number of Batteries |
1x41 Ah |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
6.5 (6.2) |
| Maximum Forward Speed, mph (kph) |
8.6 (13.9) |
| Maximum Reverse Speed, mph (kph) |
4.3 (6.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Front Tread Width, in (mm) |
29 (730) |
| Rear Tread Width, in (mm) |
27 (680) |
| Wheelbase, in (mm) |
44 (1110) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
37.3 (945) |
| Ground Clearance, in (mm) |
6 (152) |
| Weight, lb (kg) |
640 (290) |
| Mower Deck Model |
38C |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Hydraulic |
| Mower Deck Model |
44C |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Hydraulic |
| Mower Deck Model |
50C |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Hydraulic |
