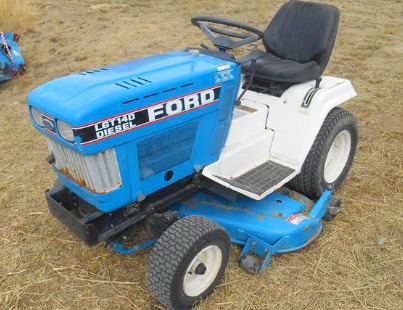

Ford LGT14D Garden Tractor
The
Ford LGT14D diesel garden tractor was manufactured from 1987 to 1991. The Ford
LGT14D tractor is powered by 37.7 cu.in (617 cc) Shibaura E643 4-cycle
3-cylinder water-cooled horizontal-shaft diesel engine.
The engine has a cylinder bore of 2.52" (64 mm), piston stroke of 2.52"
(64 mm), and max output power of 14 hp (10.4 kW). The Ford LGT-14D is
fitted with a 2-range shaft-driven hydrostatic transmission. The maximum
forward speed - 4 mph (6.4 km/h) using low range and 8 mph (12.9 km/h)
using high range.
The maximum reverse speed - 2 mph (3.2 km/h) using low range and 4 mph
(6.4 km/h) using high range. The garden tractor was equipped with a
manual steering system, mechanical disc brakes, 16x6.50-8 front tires,
and 23x10.50-12 rear tires. The wheel base is 47.2 inches (1190 mm). The
Ford LGT14D is compatible with a 48" mid-mount 3-blade mower deck with
cutting height of 1.0-4.0" (25-102 mm), 42" front-mount single-stage
snowblower with mechanical lift system, and 46" front blade.
| Engine Model |
Shibaura E643 |
| Engine Type |
Water-cooled 4-cycle horizontal-shaft diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (cc) |
37.7 (617) |
| Engine Bore, in (mm) |
2.52 (64.0) |
| Engine Stroke, in (mm) |
2.52 (64.0) |
| Maximum Engine Power, hp (kW) |
14.0 (10.4) |
| Rated Engine Speed, rpm |
3200 |
| Fuel System |
Injection pump |
| Air Cleaner |
Dry type |
| Pre-Heating |
Glow plugs |
| Fuel Tank Capacity, gal (L) |
2.6 (9.8) |
| Oil Capacity, qts (L) |
2.7 (2.6) |
| Coolant Capacity, qts (L) |
3.2 (3.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3200 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-ranges) |
| Number of Reverse Gears |
Infinite (2-ranges) |
| Oil Capacity, qts, (L) |
9.6 (9.2) |
| Maximum Forward Speed (Low Range), mph (kph) |
4.0 (6.4) |
| Maximum Forward Speed (High Range), mph (kph) |
8.0 (12.9) |
| Maximum Reverse Speed (Low Range), mph (kph) |
2.0 (3.2) |
| Maximum Reverse Speed (High Range), mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
47.2 (1190) |
| Length, in (mm) |
71 (1800) |
| Height, in (mm) |
47.6 (1200) |
| Overall Width, in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
6.2 (150) |
| Weight (with Mower Deck), lb (kg) |
1105 (456) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Overall Width, in (mm) |
60 (1520) |
| Drive System |
Belt driven |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
44 (1110) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1160) |
| Lift System |
Manual |
| Angle |
Manual |
