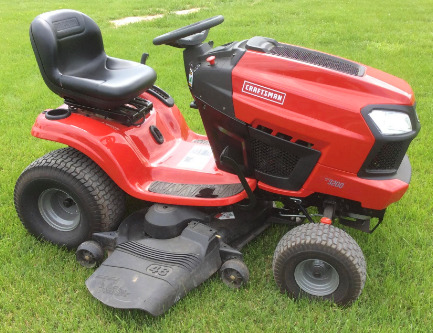

Craftsman T3200 Lawn Tractor
The
Craftsman T3200 is a T3000 series lawn tractor. This model was manufactured by
Husqvarna built from 2014 to 2019. The components of Craftsman T3200 driveline
system: Briggs and Stratton 44N677 4-cycle vertical-shaft V-twin OHV air-cooled
gasoline engine with a maximum power of 22 hp (16.4 kW), and RS800 belt-driven
CVT transmission with infinite forward and reverse gears.
The engine has an integral fuel pump, full pressure lubrication system
with oil filter, and electronic spark ignition system. Max. forward
speed - 7.5 mph (12.1 km/h), max. reverse speed - 2.9 mph (4.7 km/h).
The Craftsman T3200 lawn tractor is equipped with 15x6.00-6 front tyres
and 20x8.00-8 rear tyres. The wheelbase is 48 inches (1210 mm). The
tractor is compatible with the following attachments: a 48" mid-mount
mower deck with a cutting height of 1.0-4.0" (25-100 mm), 42"
front-mount single-stage snowblower, and 42" front blade with mechanical
lift.
| Engine Model |
Briggs and Stratton 44N677 |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3300 |
| Transmission Model |
General Transmission RS800 |
| Transmission Type |
Belt-driven CVT |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
72.8 (1840) |
| Height, in (mm) |
46 (1160) |
| Overall Width, in (mm) |
49.5 (1250) |
| Weight, lb (kg) |
462 (210) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.0-4.0 (25-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
