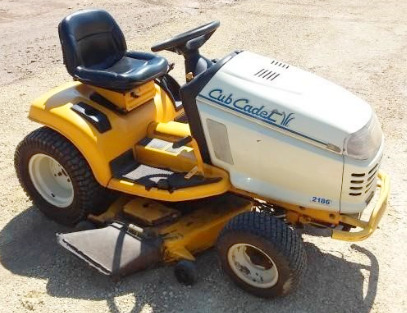

Cub Cadet 2186 Garden Tractor
The
Cub Cadet 2186 is a 2000 series garden tractor. This model was manufactured from
2000 to 2003. The Cub Cadet 2186 driveline consists of a 38.1 cu.in (624 cc)
Kohler Command CH18S 4-cycle 2-cylinder air-cooled gasoline engine and
Sundstrand shaft driven hydrostatic transmission with infinite forward and
reverse gears.
The engine has a cylinder bore of 3.03" (77 mm), piston stroke of 2.64"
(67 mm), rated power of 18 hp (13.5 kW), and max torque of 43.5 Nm (32.2
lb-ft) at 2200 rpm.
The maximum forward speed - 6 mph (9.7 kph), maximum reverse speed - 3
mph (4.8 kph). The Cub Cadet 2186 is equipped with a manual steering
system, internal expanding brakes, 15x6.50-8 front tires, and 23x9.50-12
rear tires. The wheel base is 47" (1190 mm). The tractor is compatible
with a 44" mid-mount 3-blade mower deck with cutting height of 1.0-4.5"
(25-115 mm) and mechanical lift system, 42" mid-mount two-stage
snowblower, or 42" front blade.
| Engine Model |
Kohler Command CH18S |
| Engine Type |
Gasoline, 4-cycle 2-cylinder air-cooled |
| Number of Cylinders |
V-Twin |
| Displacement, cu in (L) |
38.1 (0.624) |
| Engine Bore, in (mm) |
3.03 (77.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Power, hp (kW) |
18.0 (13.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400 |
| Maximum Torque, Nm (ft-lbs) |
43.5 (32.2) |
| Torque Speed, rpm |
2200 |
| Fuel Pump |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Ignition System |
Electronic |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.41) |
| Fuel Tank Capacity, gal (L) |
2.3 (8.7) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.7) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Internal expanding |
| Front Tire Size |
15x6.50-8 |
| Rear Tire Size |
23x9.50-12 |
| Front Tread Width, in (mm) |
30 (760) |
| Rear Tread Width, in (mm) |
27.5 (695) |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
42 (1060) |
| Overall Width (w/o Mower Deck), in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
6 (150) |
| Weight, lb (kg) |
675 (307) |
| Mower Deck Model Number |
190-208 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1115) |
| Cutting Height, in (mm) |
1.0-4.5 (25-115) |
| Lift System |
Manual |
| Weight, lb (kg) |
150 (68) |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Manual |
| Angle |
Manual |
| Weight, lb (kg) |
95 (43) |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
1 Belt |
| Lift System |
Manual |
| Weight, lb (kg) |
180 (82) |
