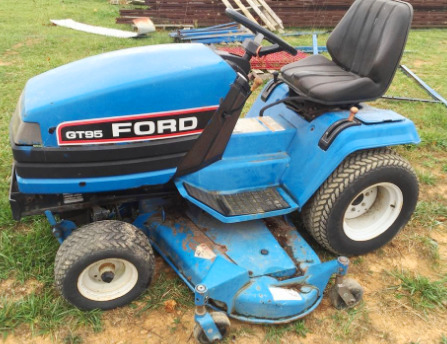

Ford GT-95 Garden Tractor
The
Ford GT-95 is a two-wheel drive garden tractor from GT-series. This model was
manufactured between 1992 and 1997. The Ford GT95 driveline consists of a Kohler
Magnum M20 V-Twin cylinder horizontal-shaft air-cooled gasoline engine and
2-range belt-driven hydrostatic transmission with infinite forward and reverse
gears.
A 47 cubic inches (770 cc) engine has a cylinder bore of 3.13" (79 mm),
piston stroke of 3.06" (78 mm), and rated power of 20 hp (14.8 kW). Max.
forward speed - 8 mph (12.9 kph), maximum reverse speed - 3.7 mph (6
kph).
The tractor was equipped with 16x6.50-8 front tires and 23x10.5-12 rear
tires. The wheelbase is 49.8" (1260 mm). The Ford GT-95 garden tractor
is compatible with the following attachments: 44", 48", 60" mid-mount
3-blade mower decks with cutting height of 1.0-4.0" (25-102 mm) and
hydraulic lift system, 42" front-mount single-stage snowblower, or 46"
front blade.
| Engine Model |
Kohler Magnum M20 |
| Engine Type |
Gasoline, 4-cycle horizontal-shaft V-Twin air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
46.98 (0.77) |
| Engine Bore, in (mm) |
3.13 (79.0) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
20.0 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200 |
| Compression |
6.6:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Adjustable main jet or fixed jet |
| Fuel Pump |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Ignition System |
Magneto |
| Spark Plug Type, in (mm) |
Champion RV17YC |
| Spark Plug Gap, in (mm) |
0.035 (0.89) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.2-0.3) |
| Intake Valve Clearance, in (mm) |
0.003-0.006 (0.08-0.16) |
| Exhaust Valve Clearance, in (mm) |
0.011-0.014 (0.28-0.35) |
| Fuel Tank Capacity, gal (L) |
4.2 (16.0) |
| Oil Capacity, qts (L) |
2.9 (2.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Manual idler pulley |
| Front PTO Speed, rpm |
3600 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Clutch |
Manual idler pulley |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Oil Capacity, qts (L) |
9.1 (8.6) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.9) |
| Maximum Reverse Speed, mph (kph) |
3.7 (6.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual or Power |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
49.8 (1260) |
| Length, in (mm) |
74.5 (1890) |
| Height, in (mm) |
45 (1140) |
| Overall Width, in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
6.2 (155) |
| Weight, lb (kg) |
1050 (476) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-driven |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-driven |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-driven |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Hydraulic/Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1160) |
| Lift System |
Hydraulic/Manual |
| Angle |
Hydraulic/Manual |
