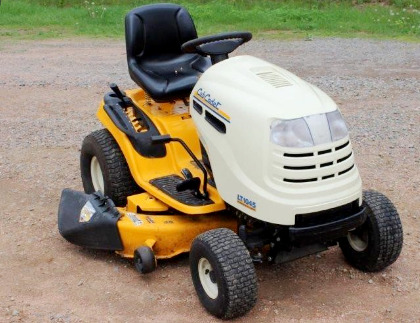

Cub Cadet LT1045 Lawn Tractor
The
Cub Cadet LT1045 lawn tractor was manufactured between 2005 and 2008. The
components of Cub Cadet LT1045 powerline system: Kohler Courage SV600 single
cylinder vertical shaft air-cooled gasoline engine and Hydro-Gear 0510
hydrostatic transmission.
A 36.4 cubic inches engine power is 20 hp (14.9 kW), and max torque
is 44.2 Nm (32 lb-ft) at 2800 rpm. The maximum travel speed (forward and
reverse): 5.2 mph (8.4 kph) / 2.3 mph (3.7 kph). The Cub Cadet LT-1045
is equipped with a manual steering system, dry disc brakes, 15x6.00-6
front tires, and 20x10.0-8 rear tires.
The wheelbase is 46 in (1160 mm).
Compatible attachments for the tractor: a 46" mid-mount 3-blade mower
deck with a cutting height of 1.5-4.0 inches (38-102 mm), 46" front
blade, and 42" front-mount two-stage snow blower with a manual lift
system.
| Engine Model |
Kohler Courage SV600 |
| Engine Type |
Gasoline, single-cylinder, vertical shaft air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
36.4 (0.597) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
44.2 (32.0) |
| Torque Speed, rpm |
2800 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.0) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 16A |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery Rating |
190 CCA |
| Electric Ground |
Negative |
| PTO Location |
Front |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| Transmission Model |
Hydro-Gear 0510 |
| Transmission Type |
Hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Overall Transaxle Reduction |
22.2:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.1) |
| Oil Capacity, qts (L) |
2.40 (2.25) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
15x6.0-6 |
| Rear Tire Size |
20x10.0-8 |
| Wheelbase, in (mm) |
46 (1160) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
49 (1245) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
18 (465) |
| Weight, lb (kg) |
510 (230) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (38-100) |
| Cut Positions |
6 |
| Lift System |
Mechanical |
| Snowblower Model |
190-673 |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Model |
190-674 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
