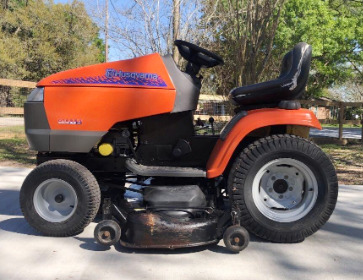

Husqvarna GT2254 Garden Tractor
The
Husqvarna GT2254 is a two-wheel drive garden tractor. This model was
manufactured from 2005 to 2012. The Husqvarna GT2254 garden tractor is powered
by Briggs and Stratton 40H777 four-cycle vertical-shaft V-twin cylinder
air-cooled gasoline engine with a maximum output power of 22 hp (16.5 kW) and
49.2 Nm (36.5 lb-ft) of peak torque at 2400 rpm.
The Husqvarna GT2254 is fitted with a 6x2 gear transmission with 8
speeds in 2 ranges (high and low). The maximum forward speed - 5.4 mph
(8.7 kph), max. reverse speed - 2.1 mph (3.4 kph).
The Husqvarna GT2254 is equipped with a manual steering system, disc
brakes, 16.5x6.50-8 front tires and 22x9.50-12 rear tires. The wheel
base is 48 inches (1210 mm). The tractor is compatible with a 54"
mid-mount 3-blade side discharge mower deck with a cutting height of
1.5-4.0 inches (37-100 mm) and mechanical lifting system.
| Engine Model |
Briggs and Stratton 40H777 |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.1 (655) |
| Engine Bore, in (mm) |
2.97 (75.5) |
| Engine Stroke, in (mm) |
2.89 (73.4) |
| Maximum Engine Power, hp (kW) |
22.0 (16.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200-1400 |
| Maximum Torque, Nm (ft-lbs) |
49.2 (36.5) |
| Torque Speed, rpm |
2400 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion QC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
5.0 (19.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
16 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 280 CCA |
| Battery, AH |
35 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3600 |
| Transmission Type |
Gear drive transaxle |
| Gearbox Type |
6F/2R, 8 speeds in 2 ranges (Hi/Lo) |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Maximum Forward Speed (Low Range), mph (kph) |
2.3 (3.4) |
| Maximum Forward Speed (High Range), mph (kph) |
5.4 (8.7) |
| Maximum Reverse Speed (Low Range), mph (kph) |
0.9 (1.5) |
| Maximum Reverse Speed (High Range), mph (kph) |
2.1 (3.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16.5x6.5-8 |
| Rear Tire Size |
22x9.5-12 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
70.5 (1790) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width, in (mm) |
57 (1440) |
| Ground Clearance, in (mm) |
7 (175) |
| Weight, lb (kg) |
506 (230) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Methods |
Side discharge |
| Cutting Deck Type |
Stamped, reinforced |
| Cutting Width, in (mm) |
54 (1370) |
| Overall Width, in (mm) |
67.5 (1710) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut Positions |
7 |
| Deck Drive System |
Belt driven |
| Spindle Material |
Aluminum |
| Lift System |
Mechanical |
