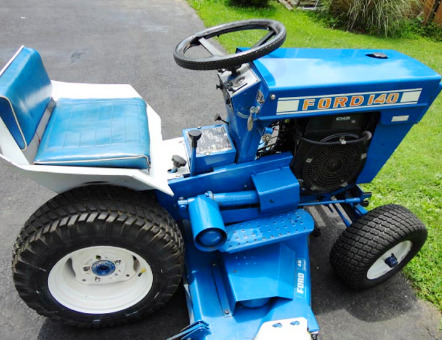

Ford 140 Garden Tractor
The
Ford 140 garden tractor was manufactured by Jacobsen built between 1969 and
1971. The Ford 140 tractor is powered by Kohler K321 4-stroke single cylinder
air-cooled gasoline engine with a maximum power of 14 Hp (10.4 kW) and 23.5 Nm
(31.9 lb-ft) of peak torque at 2200 rpm.
A 31.3 cu.in (512 cc) engine has a fixed main jet or adjustable main jet
carburetor, splash type lubrication, and forced-air cooling system. The
Ford 140 was fitted with a belt-driven hydrostatic transmission with
infinite forward and reverse gears. Max. travel speed (forward and
reverse): 7 mph (11.3 km/h) / 3 mph (4.8 km/h).
The Ford 140 was equipped with a manual steering, band brakes, 16x5.50-8
front tires, and 23x8.50-12 rear tires. The wheelbase is 43" (1090 mm).
Compatible attachments for the tractor: 36" mid-mount 2-blade mower
deck, 42" and 48" mid-mount 3-blade mower decks, 36" front-mount
single-stage snowblower, and 42" front blade.
| Engine Model |
Kohler K321 |
| Engine Type |
4-stroke air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
31.27 (0.512) |
| Engine Bore, in (mm) |
3.50 (89.0) |
| Engine Stroke, in (mm) |
3.25 (83.0) |
| Maximum Engine Power, hp (kW) |
14.0 (10.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1000-3800 |
| Maximum Torque, Nm (ft-lb) |
23.5 (31.9) |
| Torque Speed, rpm |
2200 |
| Compression |
6:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.026 (0.65) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
7.0 (11.3) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x5.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
43 (1090) |
| Length, in (mm) |
61 (1540) |
| Height, in (mm) |
39 (990) |
| Overall Width, in (mm) |
34 (860) |
| Ground Clearance, in (mm) |
6.5 (165) |
| Weight, lb (kg) |
785 (355) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
