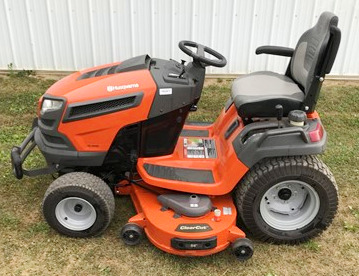

Husqvarna TS354XD Garden Tractor
The
Husqvarna TS354XD garden tractor was manufactured from 2017. The Husqvarna
TS354XD is powered by Kawasaki FR730V 4-cycle vertical shaft V-twin cylinder
air-cooled gasoline engine with a max output power of 24 hp (18 kW) and 53.8 Nm
(39.7 lb-ft) of peak torque at 2400 rpm.
The engine has an internally vented carburetor with fuel shut-off
solenoid, full pressure lubrication system with spin-on oil filter, and
electronic spark ignition system. The Husqvarna TS354XD is fitted with a
Tuff Torq K66 belt-driven hydrostatic transmission with a
foot-controlled variable speed drive.
The maximum forward speed - 5.6 mph (8.9 km/h), maximum reverse speed -
2.5 mph (4 km/h). The Husqvarna TS354XD garden tractor is fitted with
16x6.50-8 front tires and 23x10.5-12 rear tires. The wheelbase is 48"
(1215 mm). The tractor is compatible with a 54" mid-mount side discharge
high-lift blade mower deck with a cutting height of 1.5-4.0" (38-100
mm), and spring-assisted cutting height adjustment.
| Engine Model |
Kawasaki FR730V |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.3 (726) |
| Engine Bore, in (mm) |
3.07 (78.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
53.8 (39.7) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.2:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Internally vented with fuel shut-off solenoid |
| Lubrication System |
Full pressure with spin-on oil filter |
| Ignition System |
Electronic spark ignition |
| Spark Plug |
NGK BPR4ES |
| Spark Plug Gap, in (mm) |
0.027-0.031 (0.7-0.8) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K66 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
22.2:1 |
| Axle Shaft Size, in (mm) |
1.0 (25.4) |
| Oil Capacity, qts (L) |
2.75 (2.60) |
| Maximum Forward Speed, mph (kph) |
5.6 (8.9) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
48 (1215) |
| Length, in (mm) |
71 (1800) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
56 (1410) |
| Ground Clearance, in (mm) |
7 (175) |
| Weight, lb (kg) |
671 (305) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Blade Type |
High-Lift blade |
| Cutting Methods |
Side discharge |
| Cutting Width, in (mm) |
54 (1370) |
| Overall Width, in (mm) |
67 (1700) |
| Cutting Height, in (mm) |
1.5-4.0 (38-100) |
| Cutting Deck Type |
ClearCut |
| Cut Positions |
7 |
| Cutting Height Adjustment |
Central, spring-assisted |
| Anti-scalp wheels |
4 |
| Lift System |
Mechanical |
