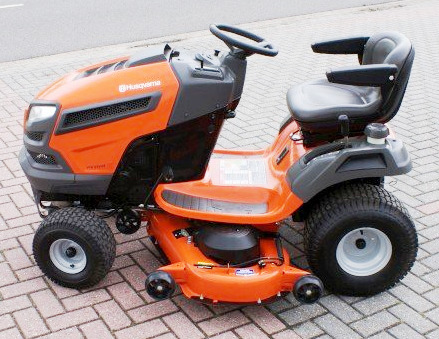

Husqvarna YTA24V48 Lawn Tractor
The
Husqvarna YTA24V48 is a lawn tractor with a charge port, electric clutch, and
chokeless start. This model was manufactured from 2015 to 2020.
The Husqvarna YTA24V48 powertrain system components: a 44.2 cubic inches
(724 cc) Briggs and Stratton 44N877 Intek 4-cycle vertical-shaft twin
cylinder air-cooled gasoline engine with a maximum power of 24 Hp (18
kW), and Fast Automatic RS800LR continuously variable transmission with
infinite forward and reverse gears. The engine has a fixed main jet
carburetor, integral type fuel pump, full pressure lubrication system
with full-flow oil filter, and electronic spark ignition.
The maximum forward speed - 7.5 mph (12 kph), max. reverse speed - 3 mph
(4.8 kph). The Husqvarna YTA24V48 is equipped with a manual steering
system, disc brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires.
The wheelbase is 48" (1220 mm). The lawn tractor is compatible with a
48" mid-mount 3-blade side discharge mower deck with cutting height of
1.5-4.0" (38-102 mm), central cutting height adjustment with
spring-assisted, and mechanical lifting system.
| Engine Model |
Briggs and Stratton 44N877 Intek |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
52.2 (38.7) |
| Torque Speed, rpm |
2400 |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starting System |
12 Volt Key Start |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Fast Automatic RS800LR |
| Transmission Type |
Continuously variable transmission (CVT) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Method |
Pedal-operated |
| Maximum Forward Speed, mph (kph) |
7.5 (12.0) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
69.3 (1760) |
| Height, in (mm) |
41.5 (1055) |
| Overall Width (Max), in (mm) |
59 (1500) |
| Overall Width (Min), in (mm) |
51 (1295) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
495 (225) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
13 Gauge steel |
| Cutting Method |
Side discharge, bag, mulch |
| Number of Blades |
3 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
48 (1220) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Spindle Type |
Aluminum |
| Anti-Scalp Wheels |
4 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
