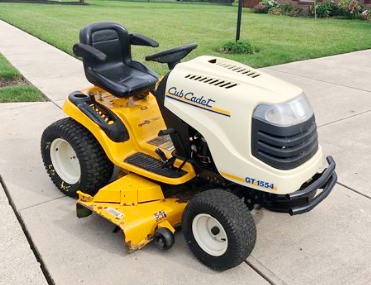

Cub Cadet GT1554 Garden Tractor
The
1500-series Cub Cadet GT1554 garden tractor was manufactured from 2006 to 2008.
The components of Cub Cadet GT1554 powerline system: Kohler
Command PRO CV740 four-cycle V-Twin OHV air-cooled gasoline engine and
belt-driven hydrostatic transmission. Max. travel speed (forward/reverse): 5.2
mph (8.4 kph) and 2.3 mph (3.7 kph).
A 44 cu.in (725 cc) engine power rating is 27 hp (20.1 kW), and maximum
torque is 55.8 Nm (40.1 lb-ft) at 2800 rpm. The engine has a fixed main
jet carburetor, full pressure lubrication, and electronic ignition
system.
The Cub Cadet GT1554 was equipped with 16x7.50-8 front tires and
13x10.50-12 rear tires. The wheel base is 49" (1240 mm). The tractor is
compatible with a 54" mid-mount 3-blade mower deck, 42" front-mount
2-stage snowblower, and 46" front blade with a manual lifting system.
| Engine Model |
Kohler Command PRO CV740 |
| Engine Type |
Gasoline 4-cycle V-Twin OHV air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.0 (725) |
| Engine Bore, in (mm) |
3.27 (83.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
27.0 (20.1) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200 |
| Maximum Torque, Nm (ft-lbs) |
55.8 (40.1) |
| Torque Speed, rpm |
2800 |
| Compression |
9:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Nikki or Keihin |
| Carburetor Type |
Fixed main jet |
| Fuel Pump Type |
Pulse |
| Governor Type |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Ignition Type |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Valve Lash |
Hydraulic |
| Fuel Tank Capacity, gal (L) |
2.3 (8.5) |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Electrical System Rating, Volts |
12 |
| Charging Rating, Amps |
15 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery CCA |
235 |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Oil Capacity, qt (L) |
2.45 (2.30) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
16x7.5-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
49 (1240) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
43 (1085) |
| Overall Width, in (mm) |
45 (1135) |
| Ground Clearance, in (mm) |
4.5 (110) |
| Weight (without Mover Deck), lb (kg) |
529 (240) |
| Mower Deck Type |
Mid-mount |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1370) |
| Cutting Height, in (mm) |
1.5-4.0 (38-110) |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, Two-stage |
| Model Number |
190-032 |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
Belt |
| Number of Belts |
2 |
| Lift System |
Manual |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Model Number |
190-833 |
| Width, in (mm) |
46 (1160) |
| Lift System |
Manual |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
