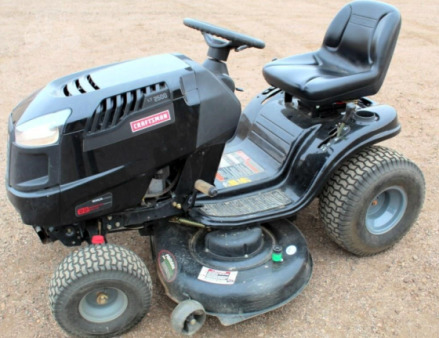

Craftsman LT2500 Lawn Tractor
The
Craftsman LT2500 is a 2-wheel drive lawn tractor. This model was manufactured by
MTD built between 2013 and 2019. The Craftsman LT2500 driveline system
components: Kohler Courage SV620 four-cycle single cylinder air-cooled gasoline
engine and MTD 918-04892B belt-driven hydrostatic transmission with infinite
forward and reverse gears.
A 36.4 cubic inches (597 cc) engine has a cylinder bore of 3.70" (94
mm), piston stroke of 3.38" (86 mm), and rated power of 22 hp (16.4 kW).
Max. travel speed (forward/reverse): 5.5 mph (8.8 km/h) and 2.8 mph (4.3
km/h).
The tractor was equipped with 15x6.00-6 front tires and 20x8.00-8 rear
tires. The wheel base is 35 in (880 mm). The Craftsman LT2500 lawn
tractor can be equipped with a 46" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0 in (37-100 mm) and manual lifting system.
| Engine Model |
Kohler Courage SV620 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
36.4 (597) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Engine Power, Hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Low Idle Speed, rpm |
1500±75 |
| High Idle Speed, rpm |
3600±50 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.31) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2800 |
| Transmission Model |
MTD 918-04892B |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.3) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
35 (880) |
| Length, in (mm) |
70 (1770) |
| Height, in (mm) |
35.5 (895) |
| Overall Width, in (mm) |
51 (1290) |
| Weight, lb (kg) |
530 (241) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut Positions |
5 |
| Drive System |
Belt |
| Belt Type |
MTD 954-04219 |
| Lift System |
Mechanical |
