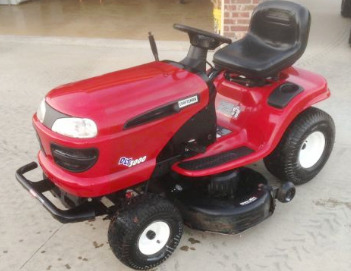

Craftsman DLT 3000 Lawn Tractor
The
Craftsman DLT 3000 lawn tractor was manufactured by AYP built between 2004 and
2005. The Craftsman DLT3000 tractor is powered by 30.6 cu.in (501 cc) Briggs and
Stratton 31P777 4-cycle single cylinder OHV vertical shaft air-cooled gasoline
engine with a rated power of 18.5 hp (13.7 kW).
The engine has a float-feed carburetor, pulse type fuel pump, and full
pressure lubrication system with oil pump and full-flow oil filter. The
Craftsman DLT 3000 is fitted with 2 transmission options: Peerless
LTH2000 belt-driven hydrostatic transmission, or Peerless 206-545
belt-driven gear transmission with 6 forward and 1 reverse gears. The
maximum forward speed - 5.5 mph (8.8 kph), maximum reverse speed - 2.4
mph (3.9 kph).
The tractor is equipped with a manual steering system, disc brakes,
15x6.00-6 front tires, and 20x8.00-8 rear tires. The Craftsman DLT 3000
is compatible with a 42" mid-mount 2-blade mower deck with cutting
height of 1.5-4.0 in (37-100 mm), five cut positions, and mechanical
lifting.
| Engine Model |
Briggs and Stratton 31P777 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.6 (501) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
18.5 (13.7) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Oil pump with filter |
| Air Cleaner |
Dual element (paper and foam) |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 9A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28 |
| Battery, CCA |
230 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2200 |
| Transmission Model |
Peerless LTH2000 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Transmission Model |
Peerless 206-545 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
1.5 (2.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
52 (1300) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
5 |
| Drive System |
Belt |
| Lift System |
Mechanical |
