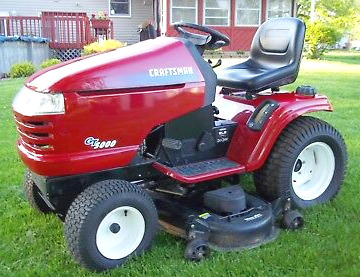

Craftsman GT-5000 Garden Tractor

The Craftsman GT5000 garden tractor was manufactured from 2003 to 2006. The Craftsman GT-5000 is powered by Kohler Command CV730 V-twin cylinder OHV air-cooled gasoline engine with a rated power of 25 Hp (18.4 kW), Briggs and Stratton 446777 V-twin cylinder OHV air-cooled gasoline engine with a rated power of 26 Hp (19.4 kW), or Briggs and Stratton 40H777 V-twin cylinder OHV air-cooled gasoline engine with a rated power of 22 Hp (16.4 kW).

The Craftsman GT5000 is fitted with 3 transmission options: Hydro-Gear 331-3000 belt-driven hydrostatic transmission, Peerless LTH2000 hydrostatic transmission, or Peerless belt-driven gear transmission with 6 forward and 2 reverse gears. Max. forward speed - 5.8 mph (9.3 km/h), max. reverse speed - 2.4 mph (3.9 km/h).

The tractor was equipped with a manual steering system, mechanical disc brakes, 15x6.50-8 front tires, and 23x10.5-12 rear tires. The Craftsman GT5000 is compatible with the following attachments: 48", 50", or 54" mid-mount 3-blade mower decks with cutting height of 1.5-4.5 in (37-115 mm), and 46" front-mount 2-stage snow blower with manual lift system.

Kohler Engine
Engine Model Kohler Command CV730
Engine Type 4-cycle V-twin cylinder OHV air-cooled gasoline engine
Number of Cylinder 2
Piston Displacement, cu.in (cc) 44.0 (725)
Engine Bore, in (mm) 3.27 (83.0)
Engine Stroke, in (mm) 2.64 (67.0)
Engine Power, Hp (kW) 25.0 (18.4)
Maximum Torque, Nm (ft-lb) 54.1 (39.9)
Fast Idle Speed, rpm 2800
Low Idle Speed, rpm 1500
Compression Ratio 9:1
Fuel System Type Carburetor
Carburetor Type Fixed main jet
Fuel Pump Pulse type
Fuel Filter In-line
Governor Centrifugal Mechanical Flyweight
Cooling System Air Intake
Air Cleaner Replaceable, paper element
Lubrication System Type Full-Pressure
Oil Filter Full-flow
Ignition System Type Electronic
Spark Plug Champion RC12YC
Spark Plug Gap, in (mm) 0.03 (0.76)
Fuel Tank Capacity, gal (L) 5.0 (19.0)
Oil Capacity, qts (L) 2.0 (1.9)

BS 446777 Engine
Engine Model Briggs and Stratton 446777
Engine Type 4-cycle V-twin cylinder OHV air-cooled gasoline engine
Number of Cylinders 2
Displacement, cu.in (cc) 44.2 (724)
Cylinder Bore, in (mm) 3.12 (79.0)
Piston Stroke, in (mm) 2.89 (73.0)
Rated Engine Power, hp (kW) 26.0 (19.4)
Rated Engine Speed, rpm 3400
Idle Speed, rpm 1600
Maximum Torque, Nm (ft-lb) 46.0 (34.0)
Fast Idle Speed, rpm 2600
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float-feed
Fuel Pump Type Integral
Governor Type Mechanical
Lubrication System Full pressure
Air Cleaner Paper cartridge with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion QC12YC
Spark Plug Gap, in (mm) 0.03 (0.76)
Fuel Tank Capacity, gal (L) 5.0 (19.0)
Oil Capacity, qts (L) 2.0 (1.9)

BS 40H777 Engine
Engine Model Briggs and Stratton 40H777
Engine Type 4-cycle V-twin cylinder OHV air-cooled gasoline engine
Number of Cylinders 2
Displacement, cu.in (cc) 40.1 (655)
Cylinder Bore, in (mm) 2.97 (75.0)
Piston Stroke, in (mm) 2.89 (73.0)
Rated Engine Power, hp (kW) 22.0 (16.4)
Rated Engine Speed, rpm 3300
Idle Speed, rpm 1600
Maximum Torque, Nm (ft-lb) 45.5 (33.7)
Fast Idle Speed, rpm 2600
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float-feed
Fuel Pump Type Integral
Governor Type Mechanical
Lubrication System Full pressure with spin-on oil filter
Air Cleaner Paper cartridge with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion QC12YC
Spark Plug Gap, in (mm) 0.03 (0.76)
Fuel Tank Capacity, gal (L) 5.0 (19.0)
Oil Capacity, qts (L) 2.0 (1.9)


Electrical System
Electrical System Rating, Volts 12
Charging System Alternator
Starter Type Electric
Number of Batteries 1
Battery Voltage, Volts 12
Battery, AH 35
Battery, CCA 280
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Electric
PTO Speed, rpm 3300

Standard Transmission
Transmission Model Hydro-Gear 331-3000
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Maximum Forward Speed, mph (kph) 5.8 (9.3)
Maximum Reverse Speed, mph (kph) 2.1 (3.4)

Optional Transmission
Transmission Model Peerless
Transmission Type Belt-driven gear
Gearbox Type 6F/2R
Number of Forward Gears 6
Number of Reverse Gears 2
Maximum Forward Speed, mph (kph) 5.4 (8.7)
Maximum Reverse Speed, mph (kph) 2.1 (3.4)

Optional Transmission
Transmission Model Peerless LTH2000
Transmission Type Hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Maximum Forward Speed, mph (kph) 5.5 (8.8)
Maximum Reverse Speed, mph (kph) 2.4 (3.9)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Mechanical disc
Front Tire Size 15x6.50-8
Rear Tire Size 23x10.5-12

48" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 3
Cutting Width, in (mm) 48 (1215)
Cutting Height, in (mm) 1.5-4.5 (37-115)
Cut positions 6
Drive System Belt
Lift System Mechanical

50" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 3
Cutting Width, in (mm) 50 (1265)
Cutting Height, in (mm) 1.5-4.5 (37-115)
Cut positions 6
Drive System Belt
Lift System Mechanical

54" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 3
Cutting Width, in (mm) 54 (1370)
Cutting Height, in (mm) 1.5-4.5 (37-115)
Cut positions 6
Drive System Belt
Lift System Mechanical

46" Snowblower
Snowblower Type Front-mount, 2-stage
Clearing Width, in (mm) 46 (1160)
Lift System Mechanical

Front Blade
Blade Type Front-mount
Width, in (mm) 48 (1215)
Lift System Mechanical
Angle Manual
