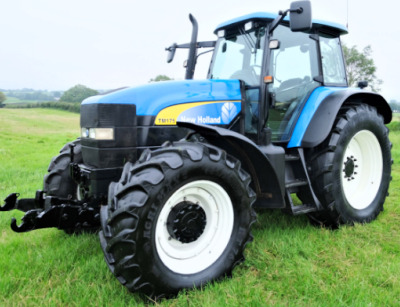

New Holland TM175 Tractor
The
New Holland TM175 is a 4x4 row-crop tractor from TM series. The model was
manufactured between 2002 and 2007. The components of NH TM175 powerline system:
New Holland six-cylinder turbo diesel engine and a 19x6 (28x12 with creeper)
power command economy full powershift transmission.
A 457 cubic inches engine has a power rating of 212 hp (156 kW), and max.
torque of 790 Nm (585 lb-ft) at 1400 rev/min. A standard speed range is
1.19-30.9 mph (1.9-49.5 kph) and speed range with creeper is 0.18-25.2
mph (0.29-40 kph).
The closed center load sensing hydraulic system used
a piston pump with flow of 120 l/min (32 g/min). The hydraulic system
pressure is 210 bar (3045 psi). The New Holland TM175 tractor is
equipped with 14.9R28 front tyres and 18.4R38 rear tyres. The wheel base
is 114.2" (2878 mm) for models with a terraglide front axle and 118.1"
(2975 mm) for models with supersteer front axle.
| Engine Make |
New Holland |
| Engine Type |
Turbocharged diesel, 6-cyl., liquid-cooled |
| Displacement, cu in (litres) |
457 (7,5) |
| Cylinders |
6 |
| Aspiration |
Turbocharged with intercooler |
| Rated engine power, hp (kw) |
177 (130) |
| Rated engine power with engine power management, hp (kw) |
212 (156) |
| Maximum engine power with engine power management, hp (kw) |
223 (164) |
| Rated speed, rpm |
2200 |
| Maximum torque, Nm |
790 |
| Rated torque speed, rpm |
1400 |
| Maximum torque with engine power management, Nm |
886 |
| Rated torque speed with engine power management, rpm |
1600 |
| Torque rise, % |
39 |
| Bore/Stroke, in (mm) |
4,40x5,00 (111,8x127,0) |
| Compression |
17.0:1 |
| Air cleaner |
Dual paper elements with aspirator |
| Oil filter |
One full flow cartridge |
| Fuel filter |
One paper element |
| Fuel capacity, gal (litres) |
105,2 (398) |
| Oil capacity, qts (litres) |
20,0 (19,0) |
| Coolant capacity, qts (litres) |
27,6 (26,1) |
| Electrical system |
12V |
| Electrical Ground |
Negative |
| Charging system |
Alternator |
| Charging Amps |
120 |
| Battery Number |
One |
| Battery cold-cranking, Amps |
1300 |
| Rear PTO |
Standard |
| Rear PTO speeds, rpm |
540/540E/1000 |
| Engine speeds, rpm |
1969/1568/2178 |
| PTO clutch type |
Wet clutch Multiplate |
| PTO Engagement |
Electro Hydraulic, proportional control |
| Front PTO |
Optional |
| Front PTO speed, rpm |
1000 |
| Transmission Type |
Power Command Economy Full Powershift |
| Gearbox Type |
19F/6R |
| Forward Gears |
19 |
| Reverse Gears |
6 |
| Speed Range, kph (mph) |
1,94-40,0 (1,21-25,1) |
| Transmission Type |
Power Command Full PowerShift with auto change |
| Gearbox Type |
19F/6R (28F/12R with creeper) |
| Forward Gears |
19 (28) |
| Reverse Gears |
6 (12) |
| Speed Range, kph (mph) |
1,9-49,5 (1,19-30,9) |
| Speed Range with Creeper, kph (mph) |
0,29-40,0 (0,18-25,2) |
| Drive Wheels |
4 Wheel Drive (4x4) |
| Steering |
Hydrostatic |
| Service brake |
Differential hydraulic wet disc |
| Front tires |
14.9 R28 |
| Rear tires |
18.4 R38 |
| Min. front track width, in (mm) |
61,7 (1552) |
| Min. rear track width, in (mm) |
60,7 (1525) |
| Max. front track width, in (mm) |
90,1 (2269) |
| Max. rear track width, in (mm) |
96,7 (2438) |
| Hydraulic system |
Closed centre load sensing |
| Main pump flow, l/m (gpm) |
120,0 (32,17) |
| Steering pump flow, l/m (gpm) |
65,0 (17,4) |
| Total oil flow, l/m (gpm) |
185,0 (49,6) |
| Number of control valves (mech/electro) |
4/5 |
| Joystick control and mid mount valves where specified |
2 |
| Hydraulic pressure, bar (MPa) |
210 (21) |
| Hitch type |
Rear |
| Rear hitch category |
2/3N |
| Control |
Electronic lower-link draft control |
| Rear linkage capacity at 61cm behind ball ends, lbs (kg) |
15810 (7187) |
| Max lifting capacity at ball ends with arms horizontal, lbs (kg) |
19020 (8647) |
| Front linkage capacity at 61cm in front of ball ends, lbs (kg) |
7198 (3270) |
| Wheelbase (4WD), in (mm) |
111,8 (2818) |
| Wheelbase (Terraglide front axle), in (mm) |
114,2 (2878) |
| Wheelbase (SuperSteer front axle), in (mm) |
118,1 (2975) |
| Overall length (4WD), in (mm) |
235,5 (5935) |
| Overall length (Terraglide front axle), in (mm) |
237,9 (5995) |
| Overall length (SuperSteer front axle), in (mm) |
241,7 (6092) |
| Maximum height (4WD), in (mm) |
127,4 (3210) |
| Ground clearance, in (mm) |
15,9 (400) |
| Turning Angle (4WD/Terraglide), deg |
55 |
| Turning Angle (SuperSteer), deg |
65 |
| Total Weight (Cabine 4WD), lbs (kg) |
14520 (6600) |
| Maximum ballasted weight (Cabine 4WD), lbs (kg) |
26400 (12000) |
