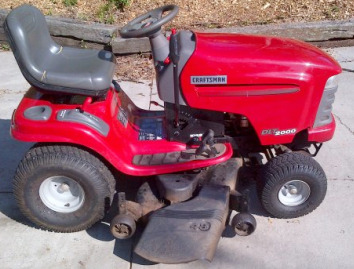

Craftsman DLT 2000 Lawn Tractor
The
Craftsman DLT 2000 is a 2-wheel drive lawn tractor. This model was manufactured
between 2001 and 2002. The tractor can be equipped with the following models of
gasoline engines: Briggs and Stratton 445777 engine with a rated power of 25 hp
(18.6 kW), Briggs and Stratton 446777 engine with a rated power of 22 hp (16.4
kW), or Kohler Command CV624 engine with a rated power of 20 hp (14.9 kW).
The Craftsman DLT2000 is fitted with a two transmission options:
Peerless 206-545C belt-driven gear transmission with 6 forward and 1
reverse gears, or Hydro Gear belt-driven hydrostatic transmission with
infinite forward and reverse gears. The maximum forward speed - 5.5 mph
(8.8 km/h), maximum reverse speed - 2.4 mph (3.9 km/h).
The Craftsman DLT 2000 tractor is equipped with a manual steering
system, mechanical disc brakes, 15x6.00-6 front tires, and 20x10.00-8
rear tires. The tractor is compatible with a 42" mid-mount 2-blade mower
deck, or 48" mid-mount 3-blade mower deck with mechanical lift system.
| Engine Model |
Briggs and Stratton 445777 |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Cylinder Bore, in (mm) |
3.12 (79.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
25.0 (18.6) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump Type |
Pulse |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.3) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Briggs and Stratton 446777 |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Cylinder Bore, in (mm) |
3.12 (79.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump Type |
Pulse |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Kohler Command CV624 |
| Engine Type |
V-Twin OHV vertical shaft four-cycle gasoline engine |
| Number of Cylinder |
2 |
| Piston Displacement, cu.in (cc) |
38.1 (624) |
| Engine Bore, in (mm) |
3.03 (77.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Engine Power, Hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
44.2 (32.6) |
| Torque Speed, rpm |
2600 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed Main Jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor |
Mechanical, centrifugal type |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable, high density paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Pump Type |
Gerotor |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic magneto |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Ignition Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.1 (2.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3300 |
| Transmission Model |
Peerless 206-545C |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
1.5 (2.4) |
| Transmission Model |
Hydro Gear |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual sector and pinion |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
2 Belts |
| Lift System |
Mechanical |
