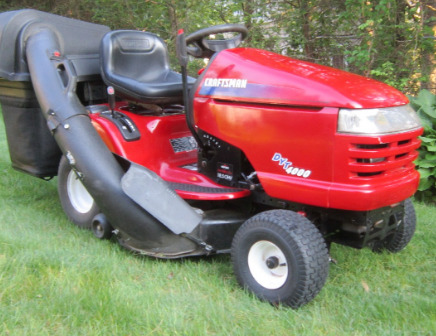

Craftsman DYT 4000 Lawn Tractor

The Craftsman DYT 4000 lawn tractor was manufactured between 2004 and 2005. The Craftsman DYT4000 is powered by Briggs and Stratton 4-cycle V-twin vertical-shaft air-cooled gasoline engines.

A 40 cubic inches (656 cc) Briggs 407577 engine has a maximum power of 21 Hp (15.7 kW). A 44 cubic inches (724 cc) Briggs 445677 engine has a maximum power of 24 Hp (17.8 kW). The Craftsman DYT 4000 is fitted with 2 transmission options: Hydro-Gear 314-0510 belt-driven hydrostatic transmission or 6x1 Peerless 206 gear transmission.

Max. travel speed (forward/reverse): 5.9 mph (9.5 kph) and 2.4 mph (3.9 kph). The tractor is equipped with 15x6.00-6 front tyres and 20x10.0-8 rear tyres. The Craftsman DYT 4000 is compatible with a 42" mid-mount 2-blade mower deck with cutting height of 1.5-4.0 inches (37-100 mm) and mechanical lift system.

BS 407577 Engine
Engine Model Briggs and Stratton 407577
Engine Type 4-cycle V-twin OHV vertical-shaft air-cooled gasoline engine
Number of Cylinders 2
Displacement, cu.in (cc) 40.03 (656)
Cylinder Bore, in (mm) 2.97 (75.0)
Piston Stroke, in (mm) 2.89 (73.0)
Rated Engine Power, hp (kW) 21.0 (15.7)
Rated Engine Speed, rpm 3300
Idle Speed, rpm 1600
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float-feed
Fuel Pump Pulse type
Governor Type Mechanical
Lubrication System Full pressure
Air Cleaner Paper cartridge with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Gap, in (mm) 0.030 (0.76)
Magneto Air Gap, in (mm) 0.008-0.012 (0.20-0.30)
Valve Lash (Intake), in (mm) 0.005 (0.127)
Valve Lash (Exhaust), in (mm) 0.005 (0.127)
Fuel Tank Capacity, gal (L) 4.0 (15.1)
Oil Capacity, qts (L) 2.0 (1.9)

BS 445677 Engine
Engine Model Briggs and Stratton 445677
Engine Type 4-cycle V-twin cylinder OHV air-cooled gasoline engine
Number of Cylinders 2
Displacement, cu.in (cc) 44.2 (724)
Cylinder Bore, in (mm) 3.12 (79.0)
Piston Stroke, in (mm) 2.89 (73.0)
Rated Engine Power, hp (kW) 24.0 (17.8)
Rated Engine Speed, rpm 3400
Idle Speed, rpm 1600
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float-feed
Fuel Pump Type Integral
Governor Type Mechanical
Lubrication System Full pressure
Air Cleaner Paper cartridge with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion QC12YC
Spark Plug Gap, in (mm) 0.03 (0.76)
Fuel Tank Capacity, gal (L) 4.0 (15.1)
Oil Capacity, qts (L) 2.0 (1.9)

Electrical System
Electrical System Rating, Volts 12
Charging System Alternator, 16A
Starter Type Electric
Number of Batteries 1
Battery Voltage, Volts 12
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Electric
PTO Speed, rpm 2800


Standard Transmission
Transmission Model Hydro-Gear 314-0510
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Maximum Forward Speed, mph (kph) 5.5 (8.8)
Maximum Reverse Speed, mph (kph) 2.4 (3.9)

Optional Transmission
Transmission Model Peerless 206
Transmission Type Belt-driven gear
Gearbox Type 6F/1R
Number of Forward Gears 6
Number of Reverse Gears 1
Maximum Forward Speed, mph (kph) 5.9 (9.5)
Maximum Reverse Speed, mph (kph) 1.8 (2.9)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual sector and pinion
Brakes Type Mechanical disc
Front Tire Size 15x6.00-6
Rear Tire Size 20x10.0-8

42" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 2
Cutting Width, in (mm) 42 (1060)
Cutting Height, in (mm) 1.5-4.0 (37-100)
Cut positions 6
Drive System Belt
Lift System Mechanical
