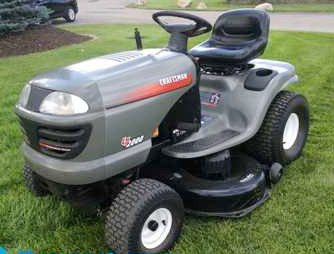

Craftsman LT2000 Lawn Tractor
The
Craftsman LT2000 lawn tractor was manufactured from 2003 to 2010. The Craftsman
LT2000 tractor is powered by Briggs and Stratton 31P677 gasoline engine with a
rated power of 20 Hp (14.8 kW), Briggs and Stratton 331777 gasoline engine with
a rated power of 21 Hp (15.3 kW), Briggs and Stratton 31G777 Intek gasoline
engine with a rated power of 17.5 Hp (13 kW), Kohler Command CV492 gasoline
engine with a rated power of 18 Hp (13.4 kW), or Kohler Command CV490 gasoline
engine with a rated power of 17 Hp (12.7 kW).
The Craftsman LT2000 is fitted with a 5 transmission options: MTD
918-04892 belt-driven hydrostatic transmission, Hydro Gear hydrostatic
transmission, 7x1 Shift-On-The-Go gear transmission, 6x1 Peerless
206-545 belt-driven gear transmission, or 6x1 Dana D6800 gear
transmission. The maximum travel speed (forward/reverse): 5.6 mph (9
kph) and 2.8 mph (4.3 kph).
The tractor was equipped with a manual steering, mechanical disc brakes,
15x6.00-6 front tires, and 20x8.00-8 rear tires. The tractor is
compatible with a 42" mid-mount 2-blades mower deck with cutting height
of 1.5-4.0" (37-101 mm), six cut positions, and mechanical lift system.
| Engine Model |
Briggs and Stratton 31P677 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.6 (501) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Oil pump with filter |
| Air Cleaner |
Dual element (paper and foam) |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Engine Model |
Briggs and Stratton 331777 |
| Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
32.9 (540) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.06 (77.8) |
| Maximum Engine Power, hp (kW) |
21.0 (15.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.75 (1.70) |
| Engine Model |
Briggs and Stratton 31G777 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.5 (500) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
17.5 (13.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Oil pump with filter |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.7) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Engine Model |
Kohler Command CV492 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
29.9 (490) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Engine Power, Hp (kW) |
18.0 (13.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
40.1 (28.2) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Diaphragm type, mechanical |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Kohler Command CV490 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
29.9 (490) |
| Engine Bore, in (mm) |
3.60 (90.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Engine Power, Hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
37.8 (27.9) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Diaphragm type, mechanical |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual/Electric |
| PTO Speed, rpm |
2800 |
| Transmission Model |
MTD 918-04892 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.3) |
| Transmission Model |
Hydro Gear |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.6 (9.0) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Transmission Model |
Shift-On-The-Go |
| Transmission Type |
Gear |
| Gearbox Type |
7F/1R |
| Number of Forward Gears |
7 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.0 (3.2) |
| Transmission Model |
Peerless 206-545 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
4.9 (7.9) |
| Maximum Reverse Speed, mph (kph) |
1.4 (2.3) |
| Transmission Model |
Dana D6800 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
1.5 (2.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual sector and pinion |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Rear Tire Size |
18x9.50-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
52 (1300) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
